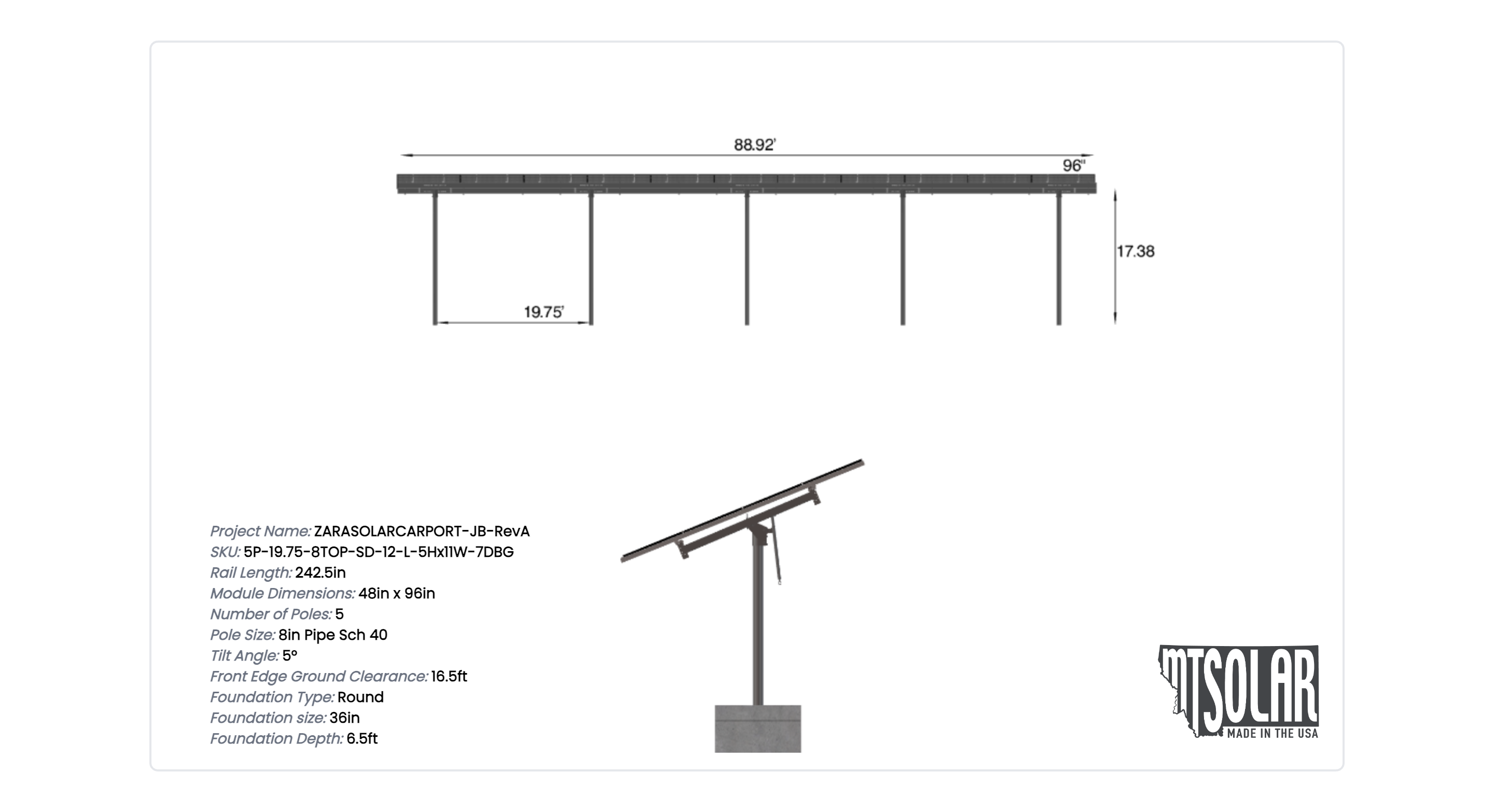

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 48 inches and an array layout of 11 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

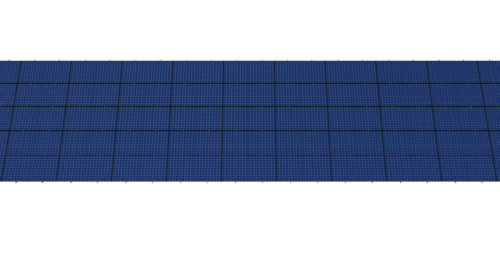

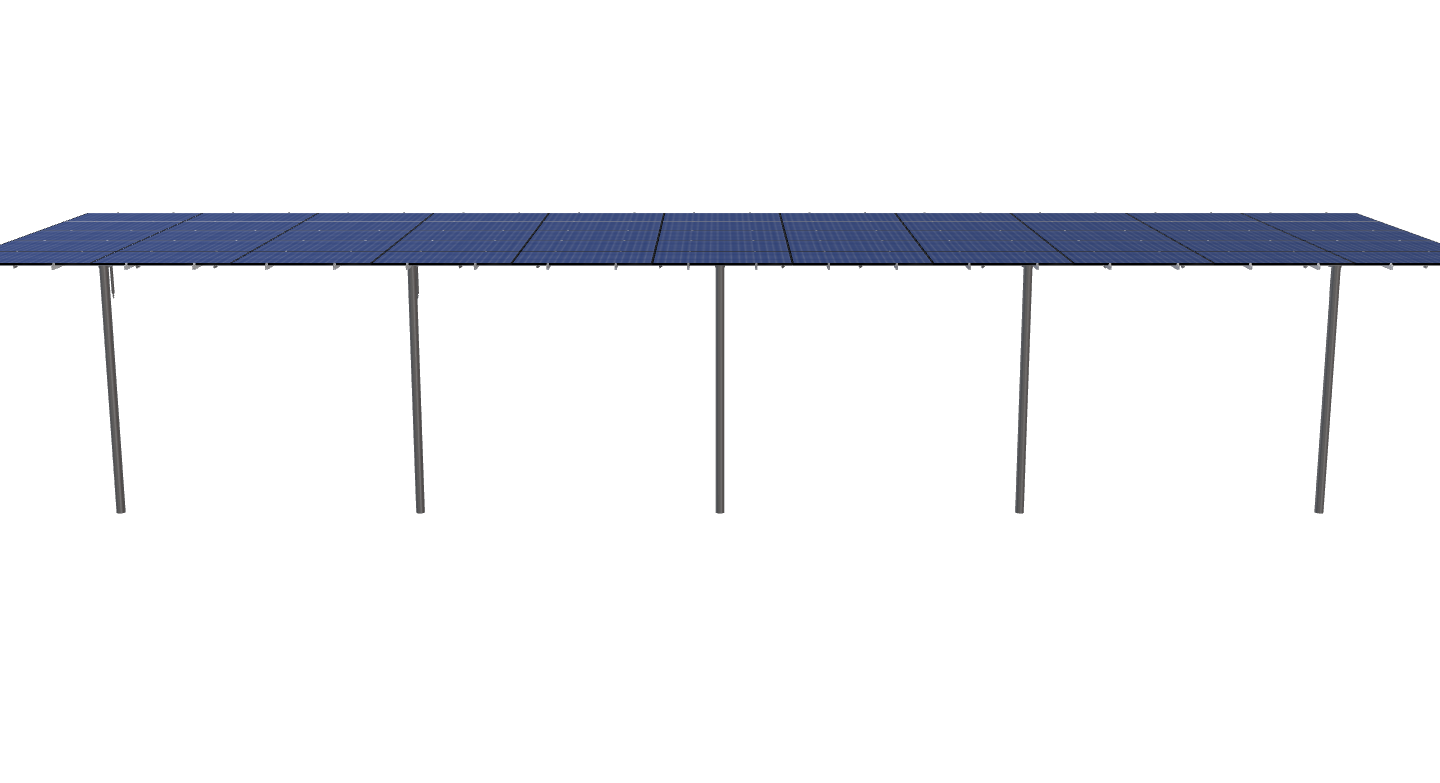

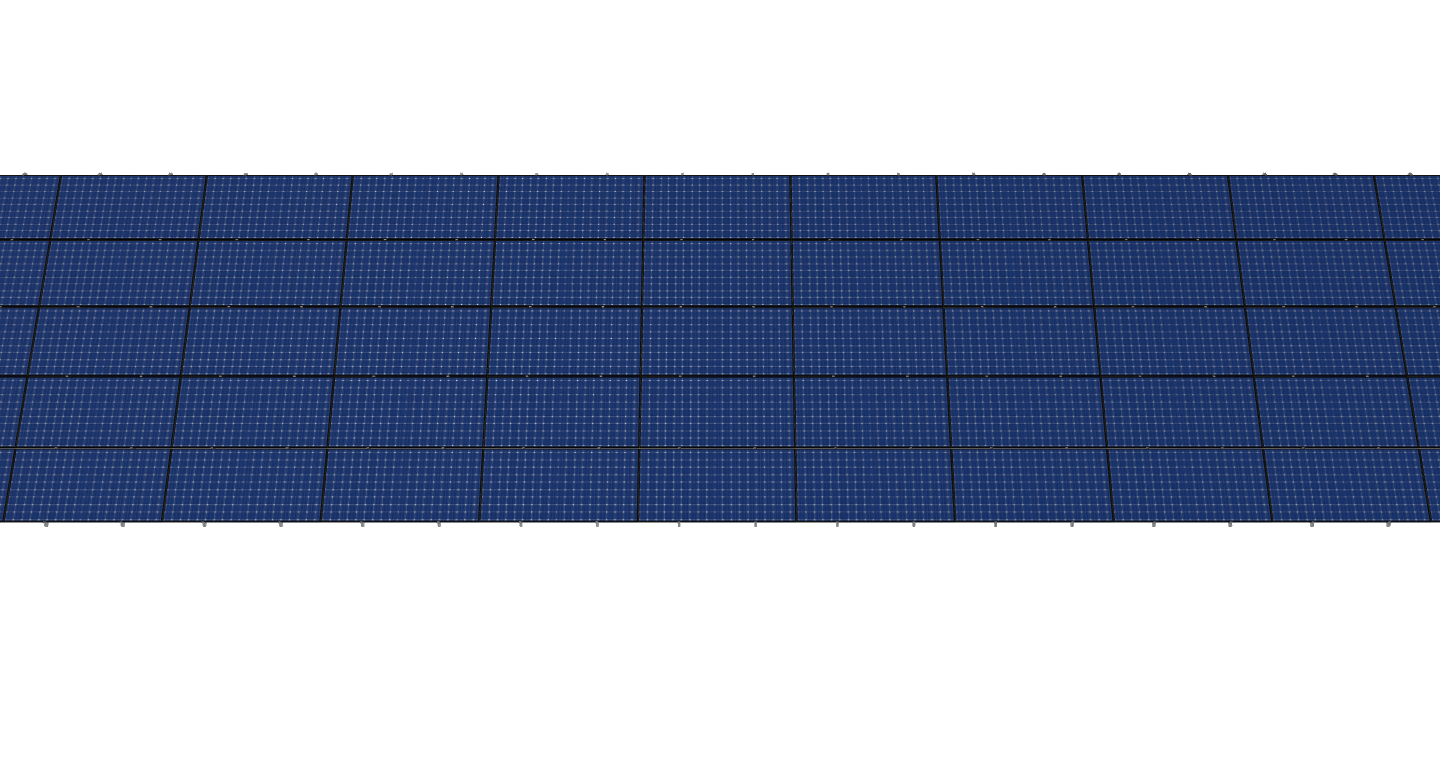

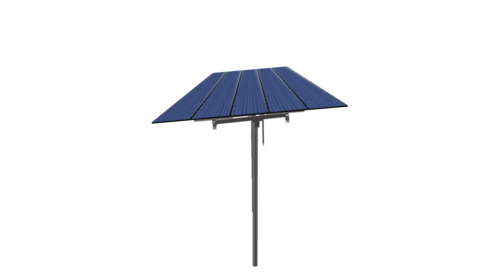

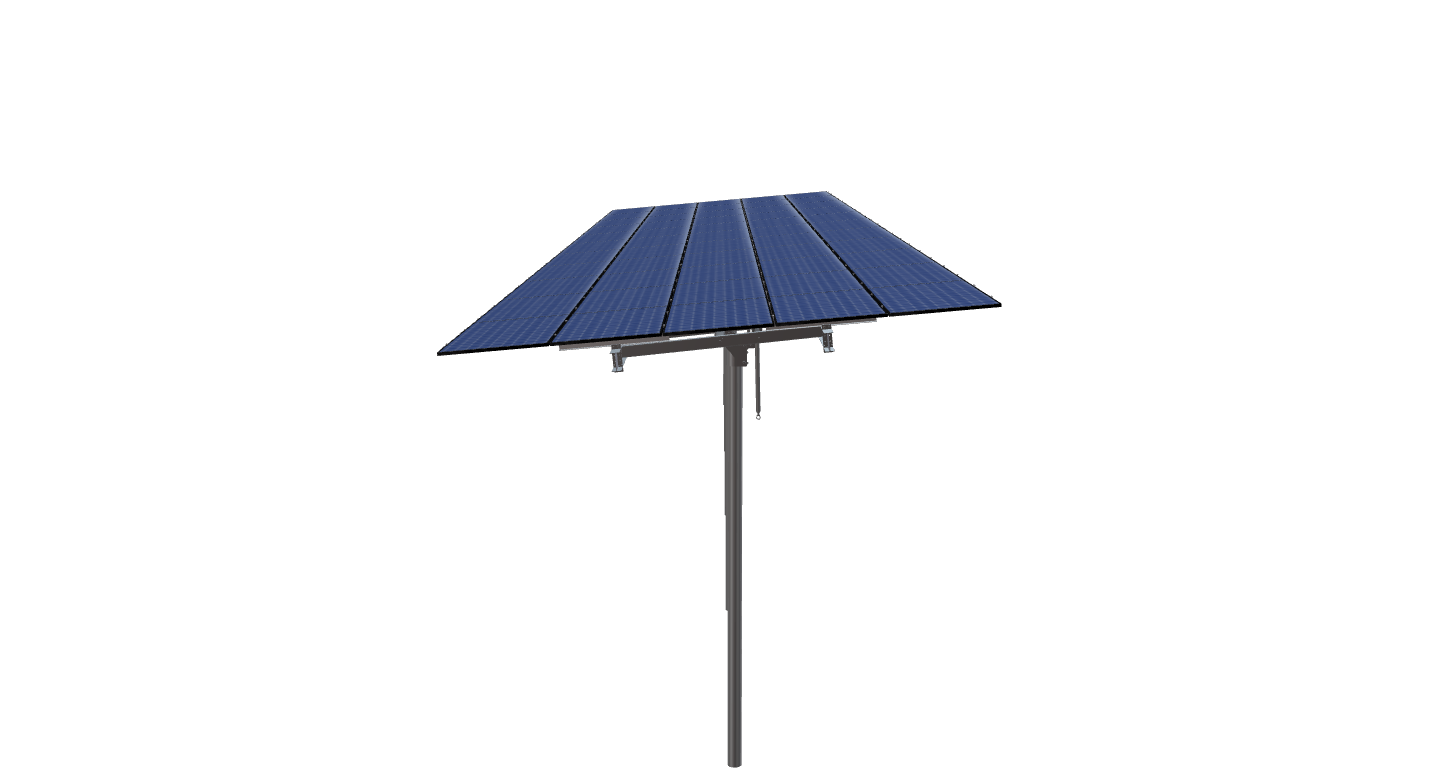

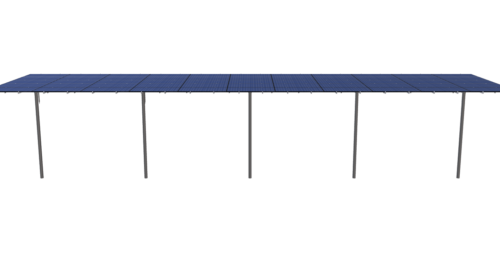

See 3D Model Here
ZARASOLARCARPORT-JB-RevA
$21,825.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 48 inches and an array layout of 11 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4289.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-SD-12-L-5HX11W-7DBG |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 17.38 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1062.00 |
| GROUND CLEARANCE | 16.50 |
| NO POLES | 5.00 |
| MODULE AREA | 1796.86 |
| ARRAY WIDTH | 88.92 |
| ARRAY HEIGHT | 20.21 |
| RAIL LENGTH | 242.50 |
| MODULE LENGTH | 96.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 88.50 |
| GROUND TO TOP | 18.25 |
| PROJECTED PANEL HEIGHT | 1.74 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | ZARASOLARCARPORT-JB-REVA |
| SITE ADDRESS | 5512, EDGEWATER, CIR, MARYSVILLE, CA, 95901, USA |
| MODULE WIDTH | 48.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 21825.22 |
| TOTAL WEIGHT | 4289.84 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/fba824b8-ece9-4604-b142-691bfd2d99ca.pdf |
|
| ID | 2674.00 |
| 3D Solar link |
