This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.25 inches by 44.625 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

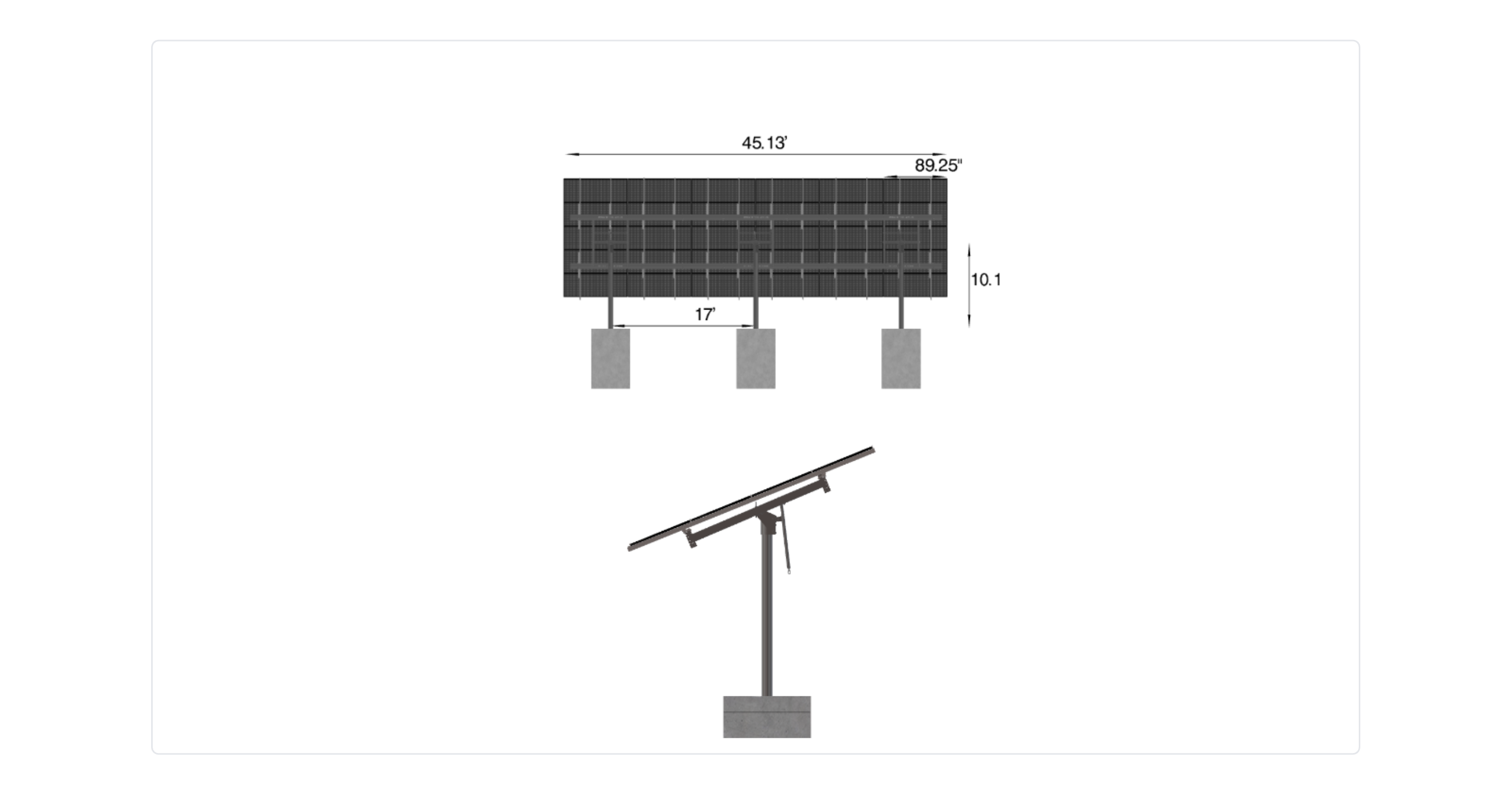

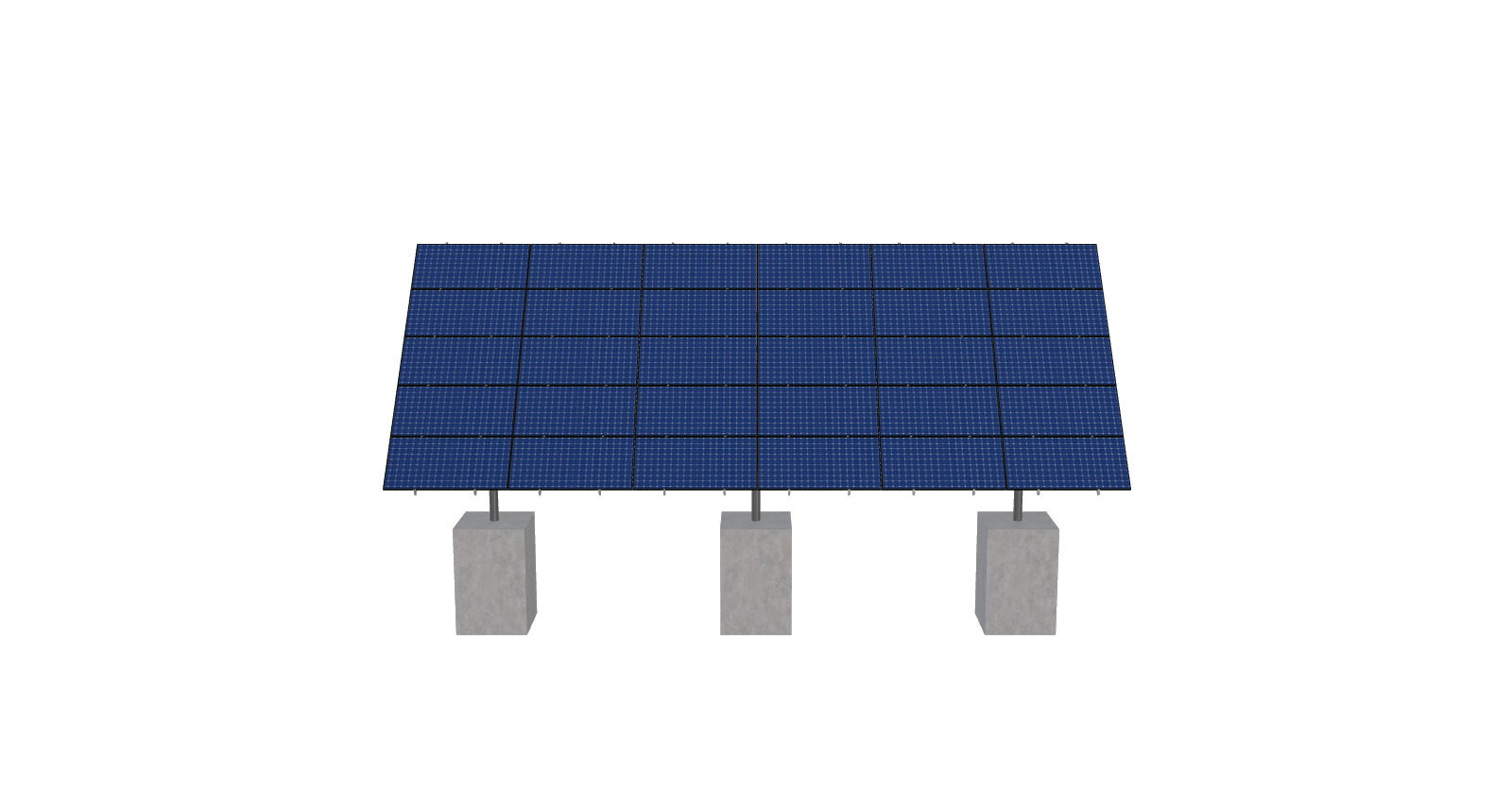

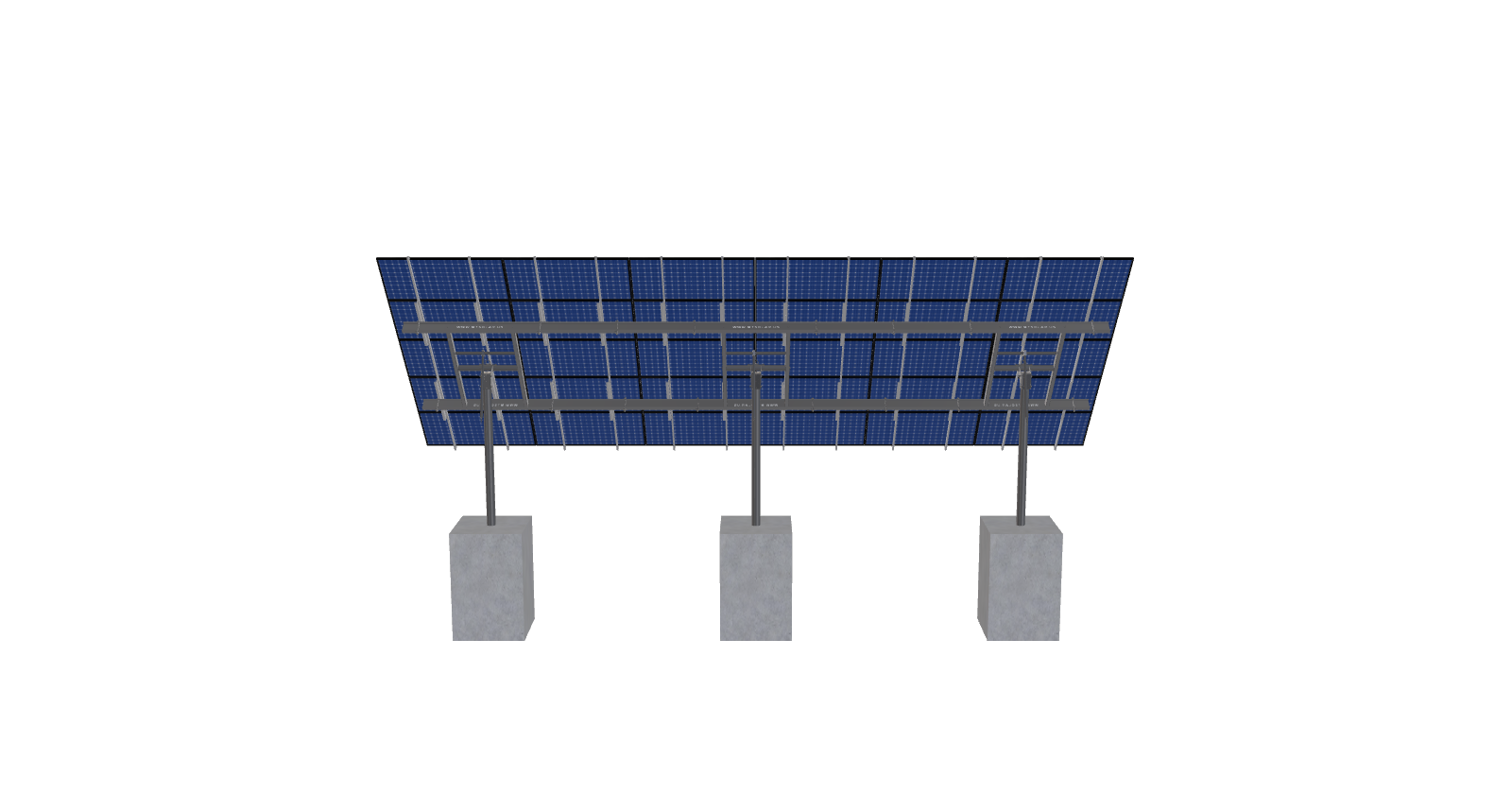

See 3D Model Here
WilsonResidence CU A
$13,614.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.25 inches by 44.625 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2684.41 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-12-L-5HX6W-BBLC |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.10 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 49.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 848.44 |
| ARRAY WIDTH | 45.13 |
| ARRAY HEIGHT | 18.80 |
| RAIL LENGTH | 225.63 |
| MODULE LENGTH | 89.25 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 17.11 |
| PROJECTED PANEL HEIGHT | 14.03 |
| PROJECT ID | WILSONRESIDENCE, CU, A |
| SITE ADDRESS | 18680, GUNSMOKE, RD, YUCCA, AZ, 86438, USA |
| MODULE WIDTH | 44.63 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| ISOLATED FOUNDATION THICKNESS | 18.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 10.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 13614.22 |
| TOTAL WEIGHT | 2684.41 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/8cfe20d9-6036-49c9-8e4b-a9835d7a6d23.pdf |
|
| ID | 2437.00 |
| 3D Solar link |
