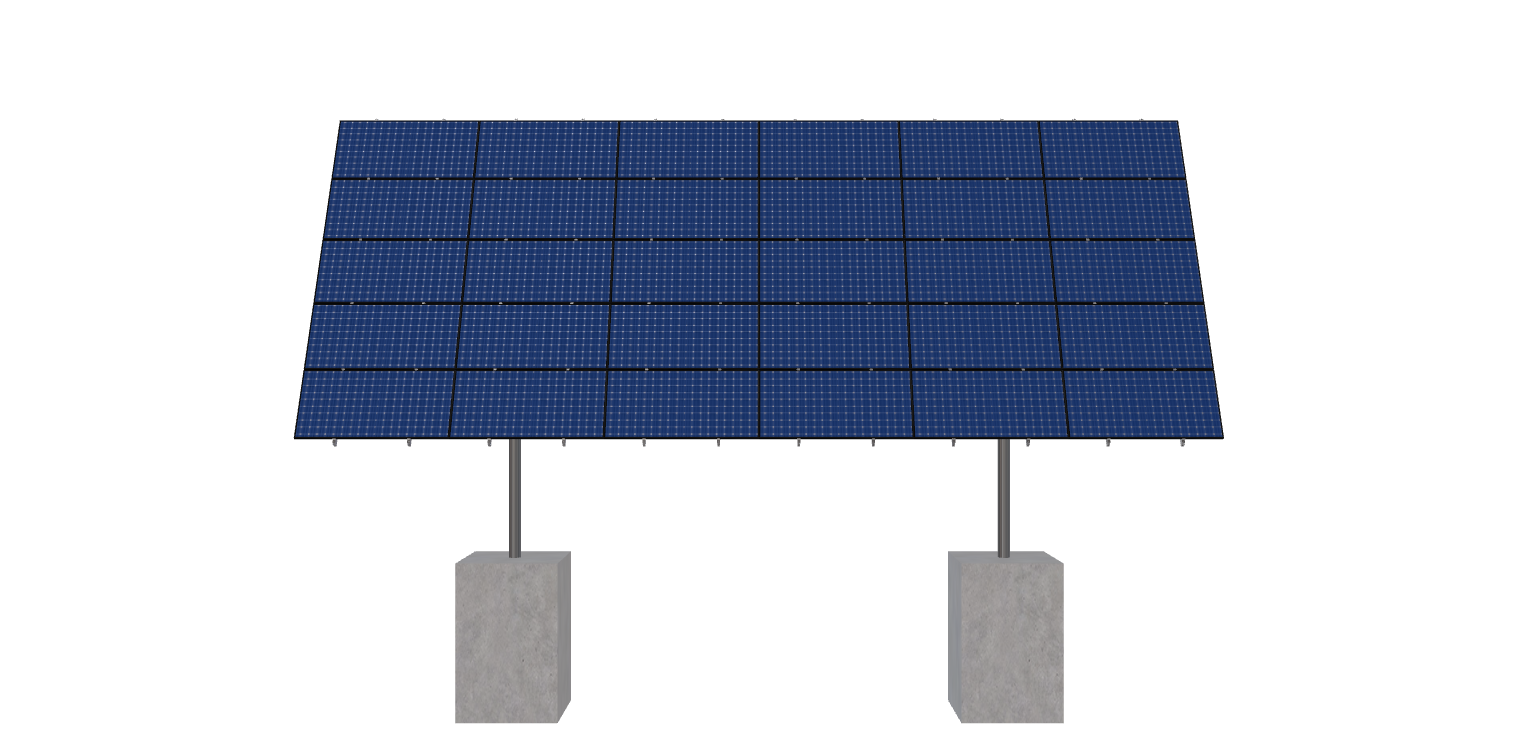

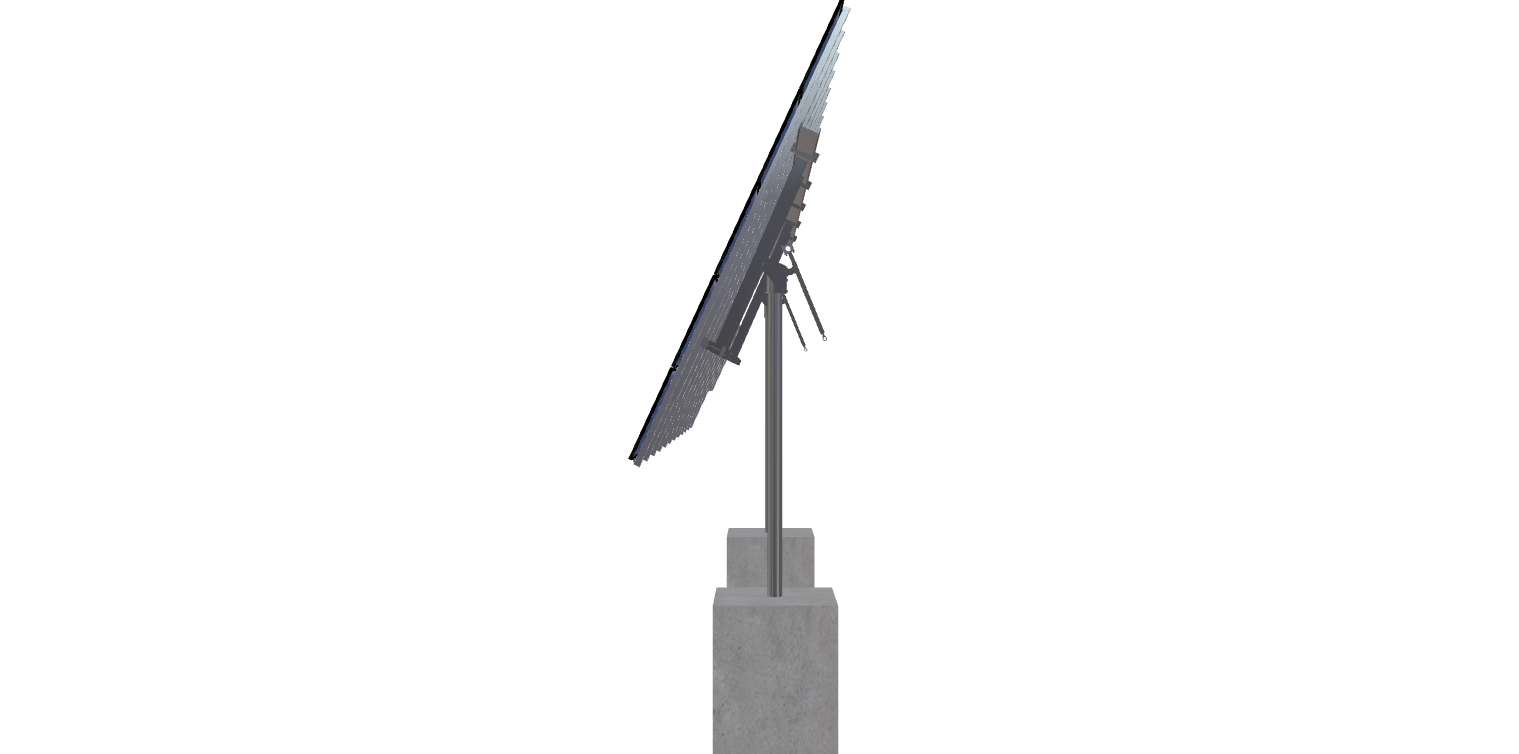

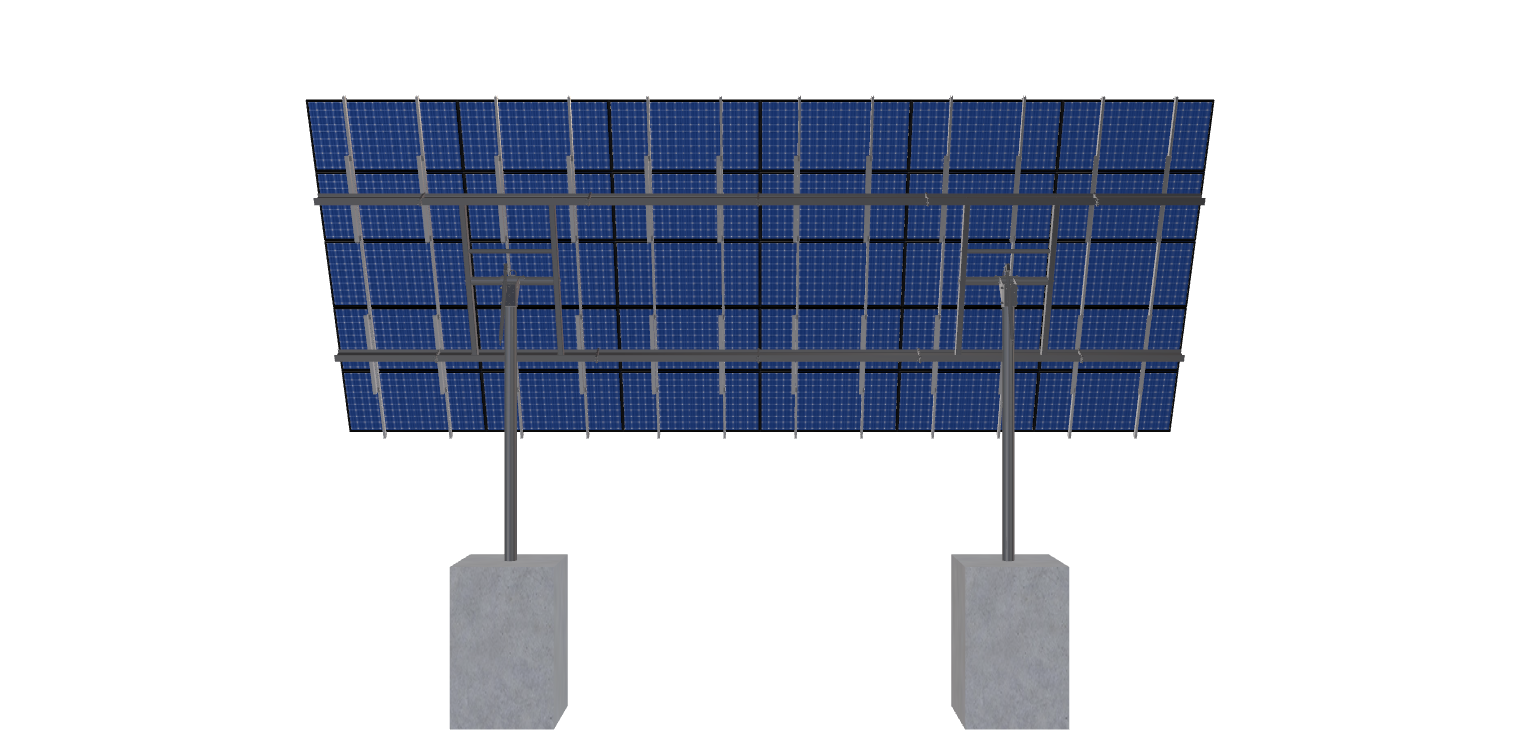

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.33 inches by 39.37 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
What russ bought65
$9,742.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.33 inches by 39.37 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1937.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-SD-57-L-5HX6W-D0I4 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.53 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 667.24 |
| ARRAY WIDTH | 40.16 |
| ARRAY HEIGHT | 16.61 |
| RAIL LENGTH | 199.35 |
| MODULE LENGTH | 79.33 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 19.96 |
| PROJECTED PANEL HEIGHT | 14.87 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | WHAT, RUSS, BOUGHT65 |
| SITE ADDRESS | DENVER, CO, USA |
| MODULE WIDTH | 39.37 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9742.08 |
| TOTAL WEIGHT | 1937.64 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/151b868c-3bb4-4702-b4ca-c5f6e61d9fe3.pdf |
|
| ID | 1532.00 |
