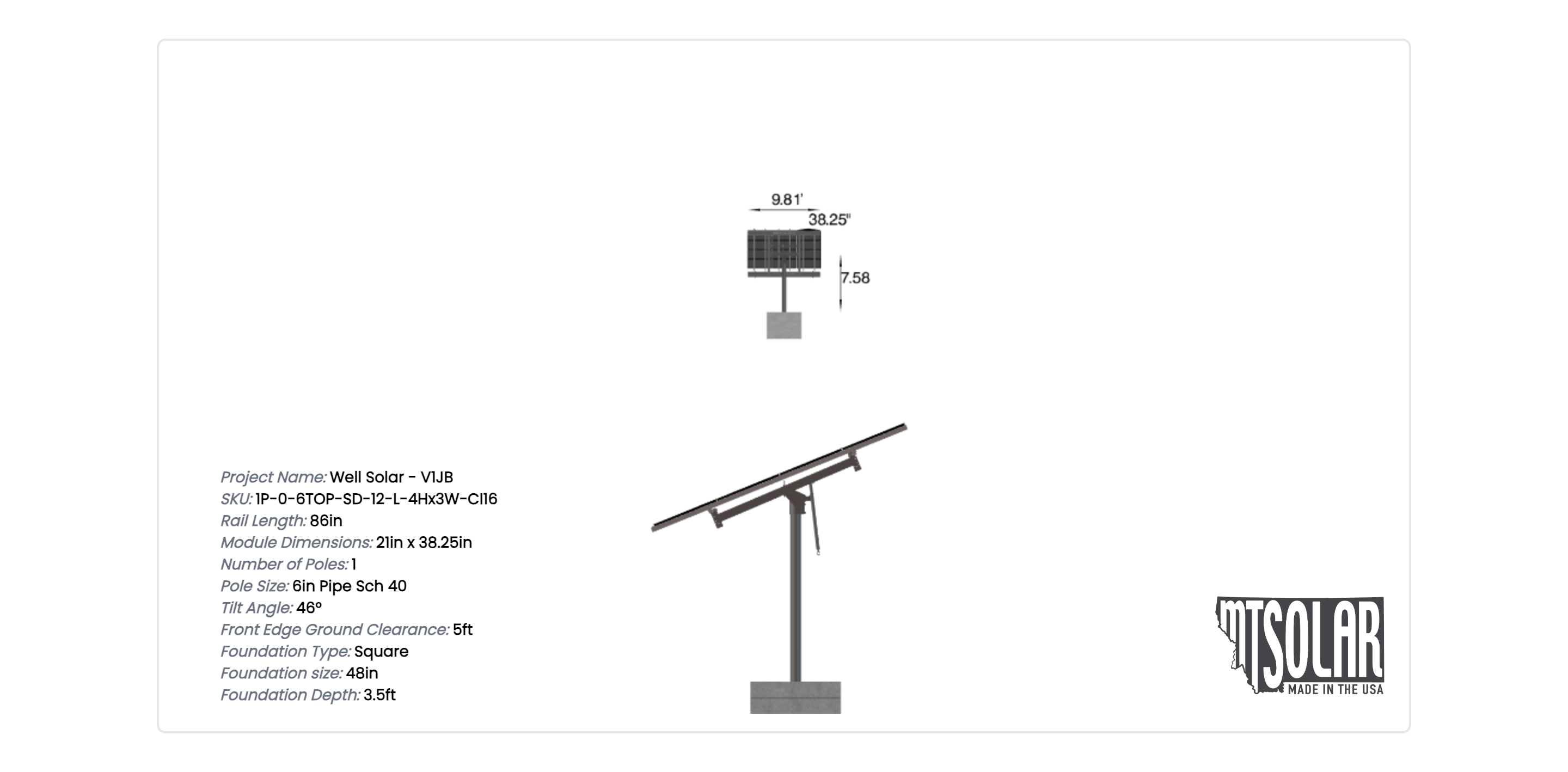

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 38.25 inches by 21 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Well Solar – V1JB
$3,480.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 38.25 inches by 21 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 564.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-4HX3W-CI16 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.58 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 3.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 70.32 |
| ARRAY WIDTH | 9.81 |
| ARRAY HEIGHT | 7.17 |
| RAIL LENGTH | 86.00 |
| MODULE LENGTH | 38.25 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 10.10 |
| PROJECTED PANEL HEIGHT | 5.04 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WELL, SOLAR, -, V1JB |
| SITE ADDRESS | COLUMBUS, MT, 59019, USA |
| MODULE WIDTH | 21.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3480.41 |
| TOTAL WEIGHT | 564.66 |
| TOTAL PALLETS | 1.00 |
