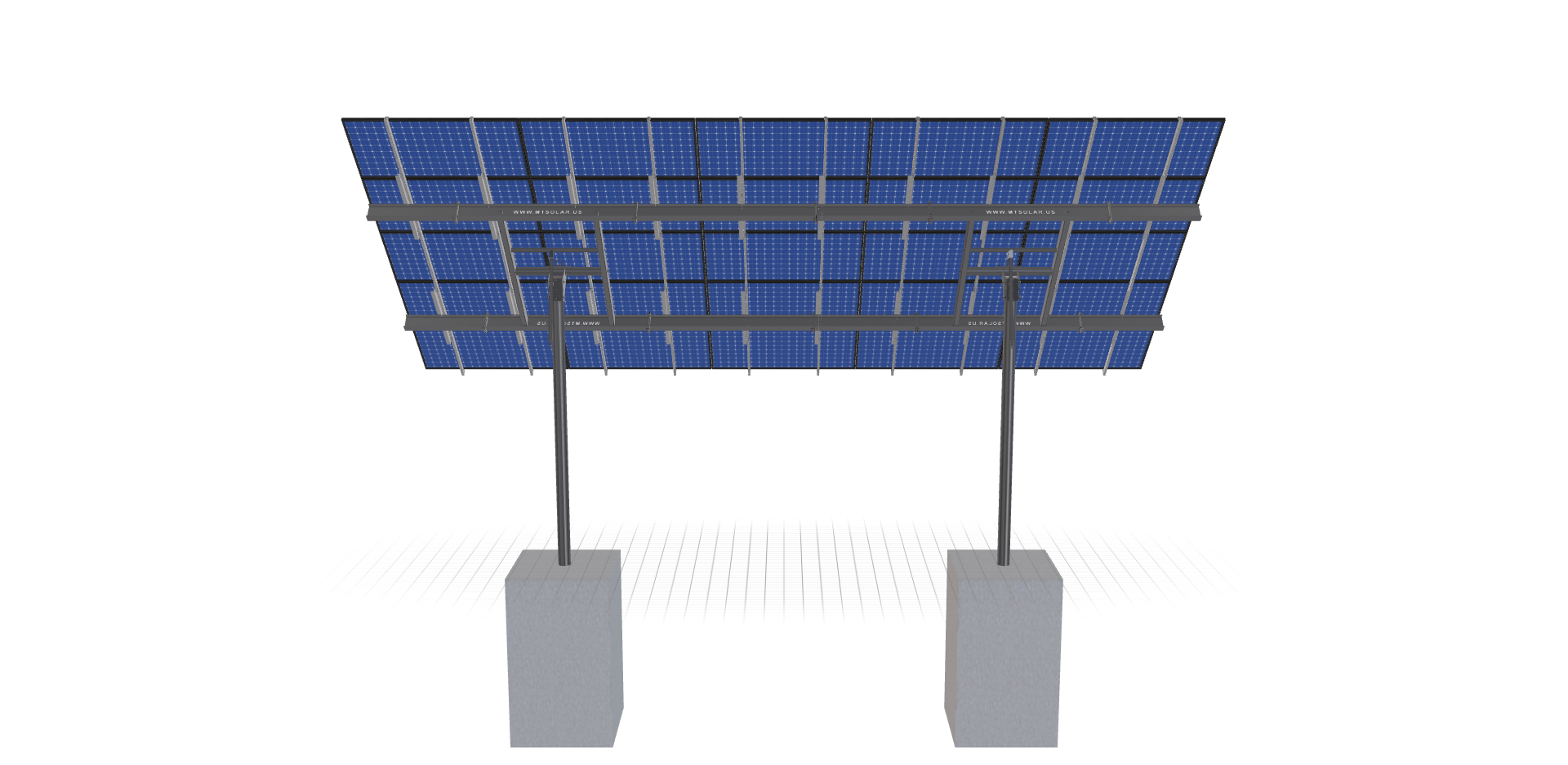

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.4 inches by 41.3 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Ward
$9,973.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.4 inches by 41.3 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1996.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-5HX5W-KF9L |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.16 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 612.49 |
| ARRAY WIDTH | 35.17 |
| ARRAY HEIGHT | 17.42 |
| RAIL LENGTH | 209.00 |
| MODULE LENGTH | 83.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 19.24 |
| PROJECTED PANEL HEIGHT | 12.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | WARD |
| SITE ADDRESS | 809, CUSHMAN, ST, FAIRBANKS, AK, 99701, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9973.23 |
| TOTAL WEIGHT | 1996.40 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/12c90541-0f15-463b-aa27-b9baa4cd9409.pdf |
|
| ID | 1333.00 |
| 3D Solar link |
