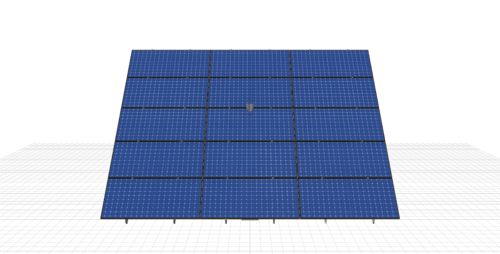

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
VanBloomestyn-RevC
$4,885.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1022 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_hsac7a918pskocsk.php |
|
| SKU CODE | 1P-0-6TOP-SD-84-L-5Hx3W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 1 |
| POLE SPACING | 15 |
| POLE HEIGHT | 10.13 |
| WING SPAN | 84 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 45 |
| CANTILEVER | 258 |
| GROUND CLEARANCE | 4 |
| NO POLES | 1 |
| MODULE AREA | 382.2 |
| ARRAY WIDTH | 22.05 |
| ARRAY HEIGHT | 17.333333333333332 |
| RAIL LENGTH | 208 |
| MODULE LENGTH | 87.2 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 21.5 |
| GROUND TO_TOP | 16.18286058419322 |
| PROJECTED PANEL_HEIGHT | 12.109203627819621 |
| PROJECT ID | VanBloomestyn-RevC |
| SITE ADDRESS | 56, Stone, Bridge, Rd, Wilmot, NH, 03287, USA |
| MODULE WIDTH | 41.1 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 3 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| WIND SPEED_OVERRIDE | 60 |
| SNOW LOAD_OVERRIDE | 30 |
| DIRECT SNOW_LOAD | false |
| TOTAL PRICE | 4885.77 |
| TOTAL WEIGHT | 976.8199999999999 |
| TOTAL PALLETS | 1 |
| ID | 183 |
