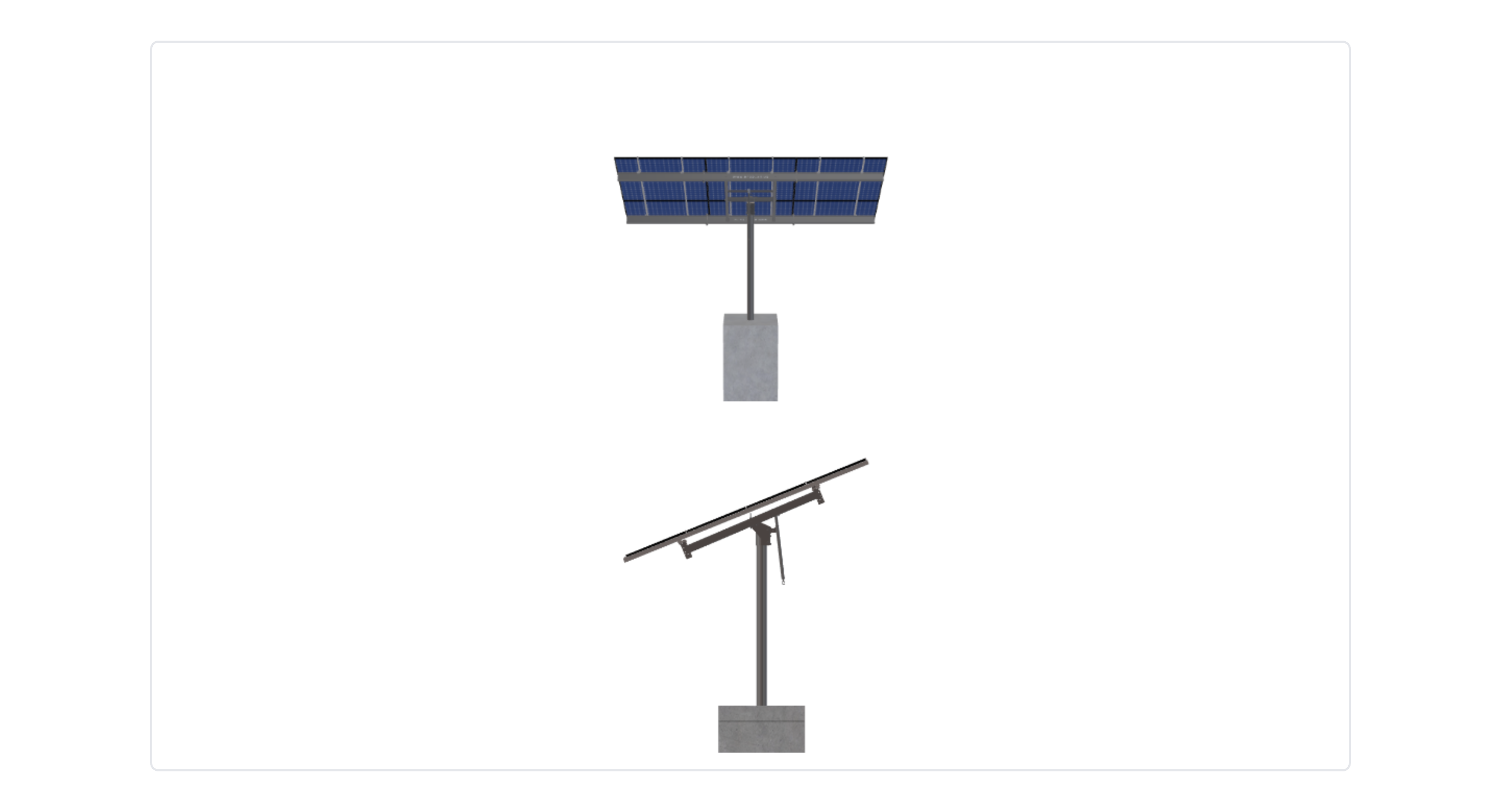

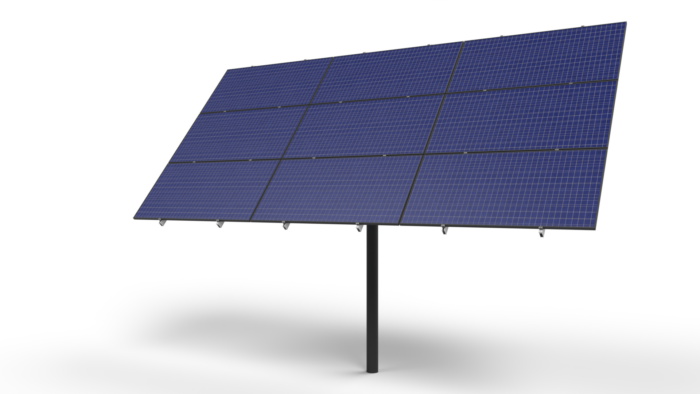

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
TOP9-87X44-105|5
$3,968.79
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 733.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-3HX3W-GEJG |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.19 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 244.75 |
| ARRAY WIDTH | 22.00 |
| ARRAY HEIGHT | 11.13 |
| RAIL LENGTH | 133.50 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 13.35 |
| PROJECTED PANEL HEIGHT | 6.31 |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 5.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | TOP9-87X44-105, 5 |
| SITE ADDRESS | 54179, HERAK, RD, CHARLO, MT, 59824, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3968.79 |
| TOTAL WEIGHT | 733.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/e890a29d-9519-417c-b239-89e9e65f892d.pdf |
|
| ID | 5934.00 |
| 3D Solar link | |
| MODULE NUMBER | 9 |
| MODULE SIZE | 87×44 |
| WIND SNOW LOAD | 105 mph, 5 psf |
