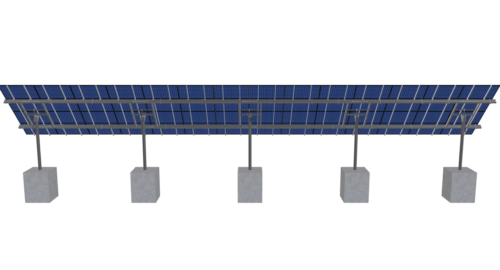

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.16 inches by 44.65 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Table to Farm Compost – V2Jb
$23,087.75
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.16 inches by 44.65 inches and an array layout of 14 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4244.79 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-12-L-4HX14W-H3LD |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.41 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 1062.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1337.24 |
| ARRAY WIDTH | 88.85 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 75.16 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 88.50 |
| GROUND TO TOP | 15.77 |
| PROJECTED PANEL HEIGHT | 10.71 |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 95.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | TABLE, TO, FARM, COMPOST, -, V2JB |
| SITE ADDRESS | 735, CO, RD, 236, DURANGO, CO, 81301, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23087.75 |
| TOTAL WEIGHT | 4244.79 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/75a64710-17ef-446c-a459-72ca810f4491.pdf |
|
| ID | 7808.00 |
| 3D Solar link |
