This Pole Mount is designed for modules with dimensions of 89.69″ by 44.65″ and an array layout of 5 high by 13 wide.
This mount fits on 5 – 6″ Sch 40 steel poles with a spacing of 19.75′ (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

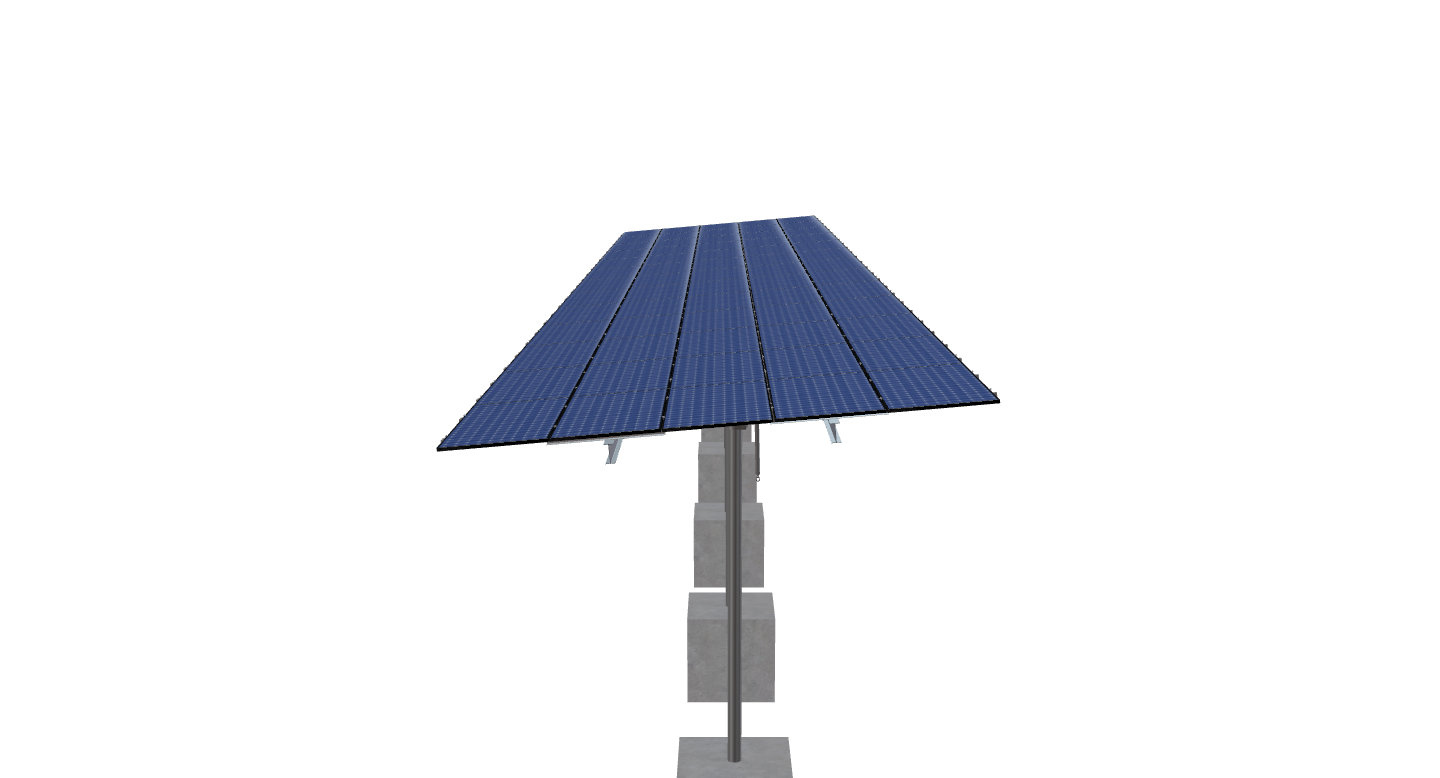

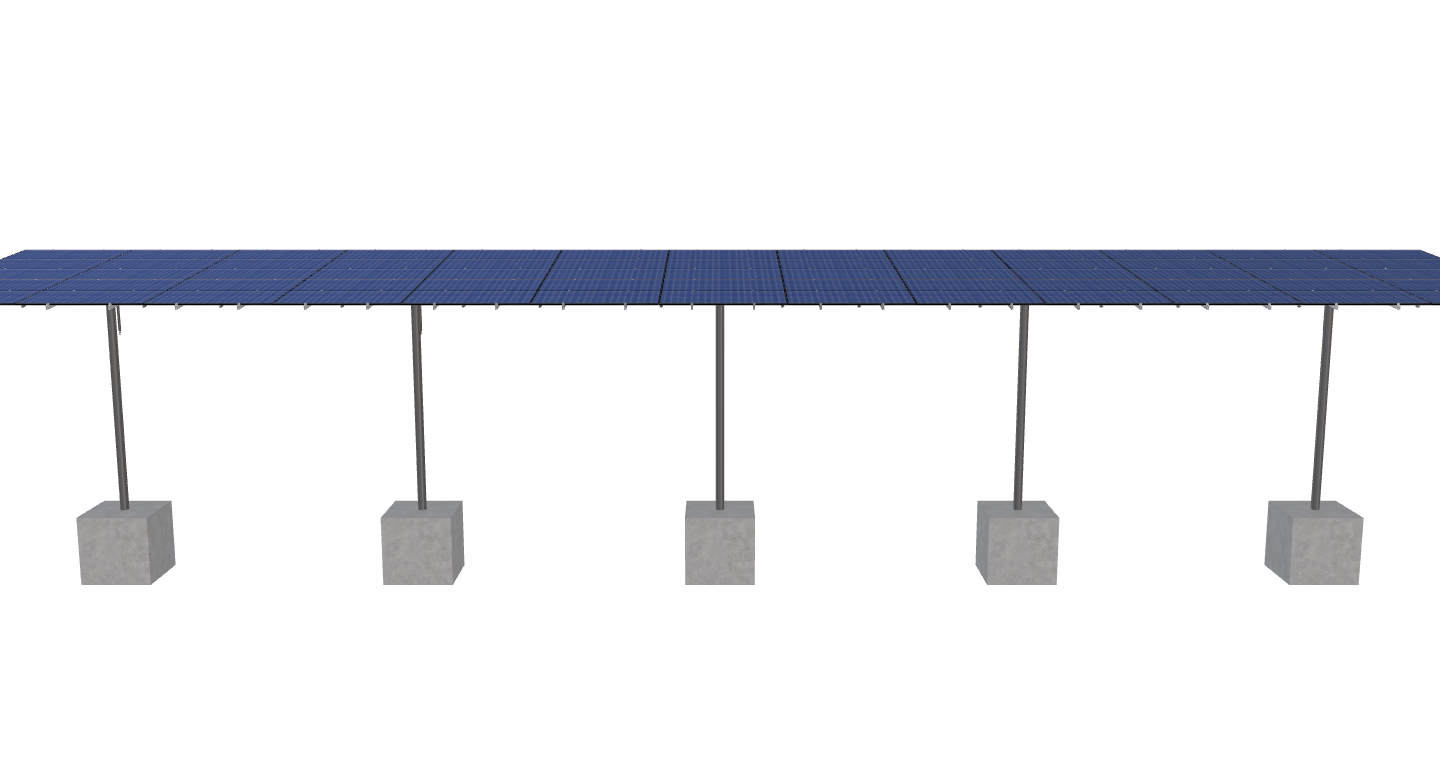

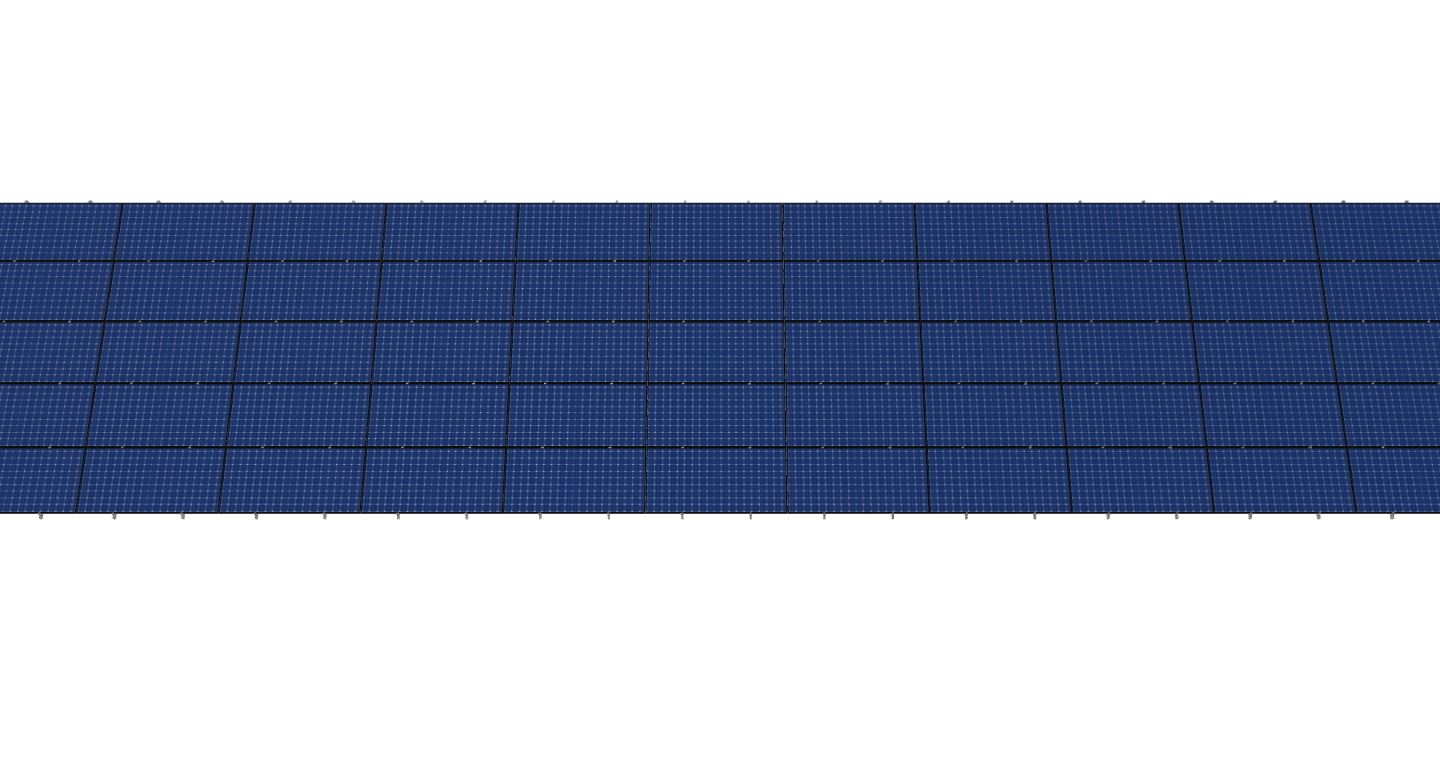

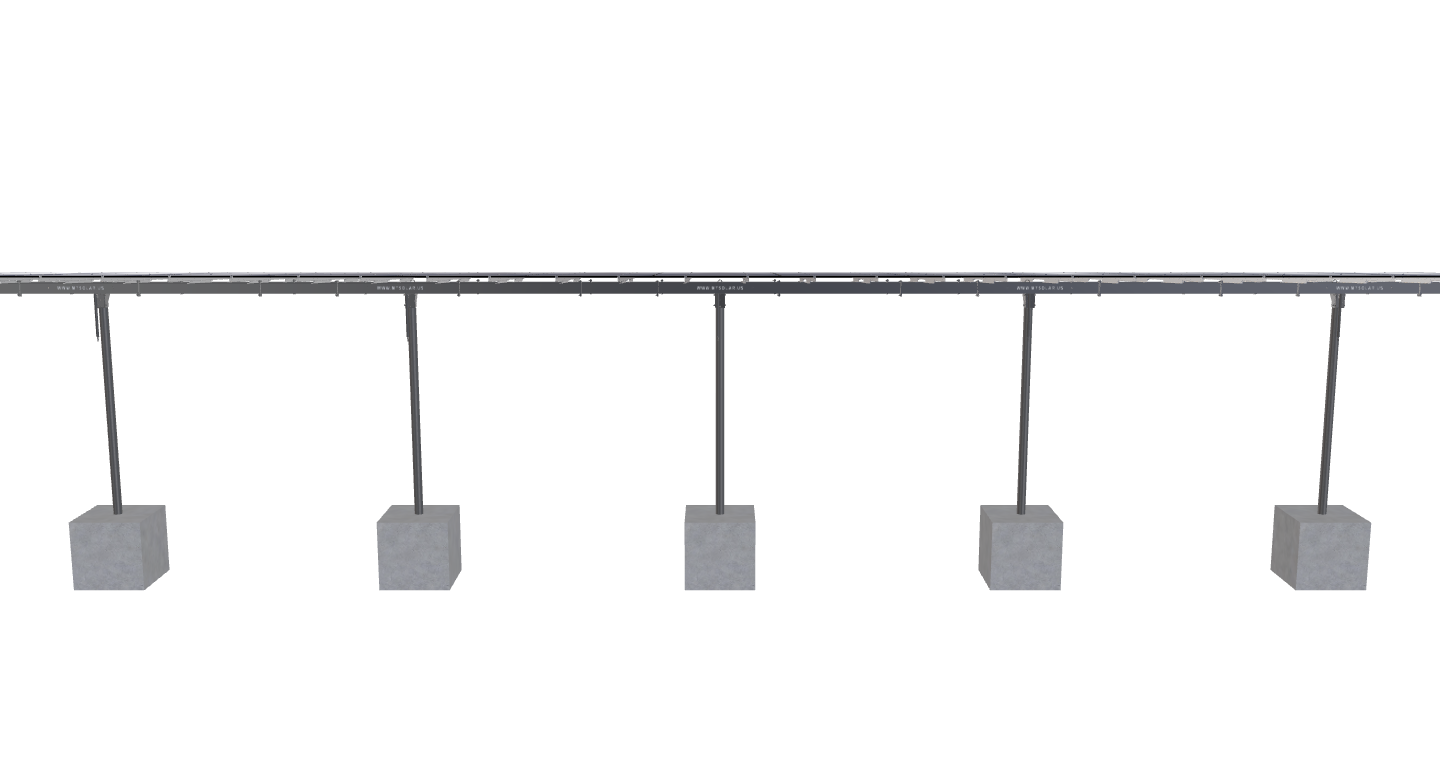

See 3D Model Here
Hot Springs National Park – V1Jb
$22,962.99
Description
This Pole Mount is designed for modules with dimensions of 89.69″ by 44.65″ and an array layout of 5 high by 13 wide.
This mount fits on 5 – 6″ Sch 40 steel poles with a spacing of 19.75′ (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4552.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

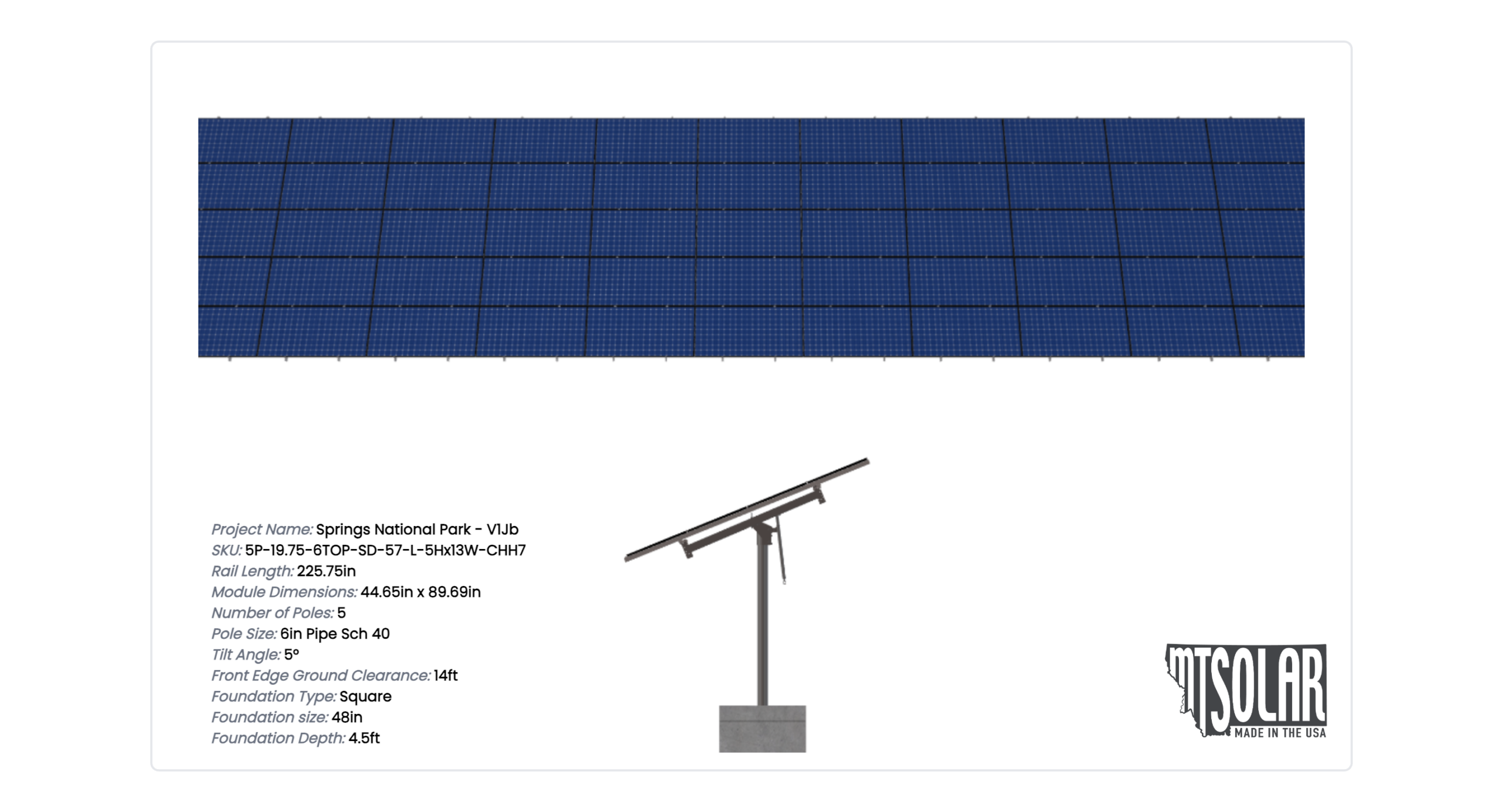

| SKU CODE | 5P-19.75-6TOP-SD-57-L-5HX13W-CHH7 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.82 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1848.28 |
| ARRAY WIDTH | 98.25 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 15.64 |
| PROJECTED PANEL HEIGHT | 1.64 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SPRINGS, NATIONAL, PARK, -, V1JB |
| SITE ADDRESS | HOT, SPRINGS, AR, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 22962.99 |
| TOTAL WEIGHT | 4552.72 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/744c5ee1-2eb0-4054-b78d-67c1a867167d.pdf |
|
| ID | 9310.00 |
| 3D Solar link |
