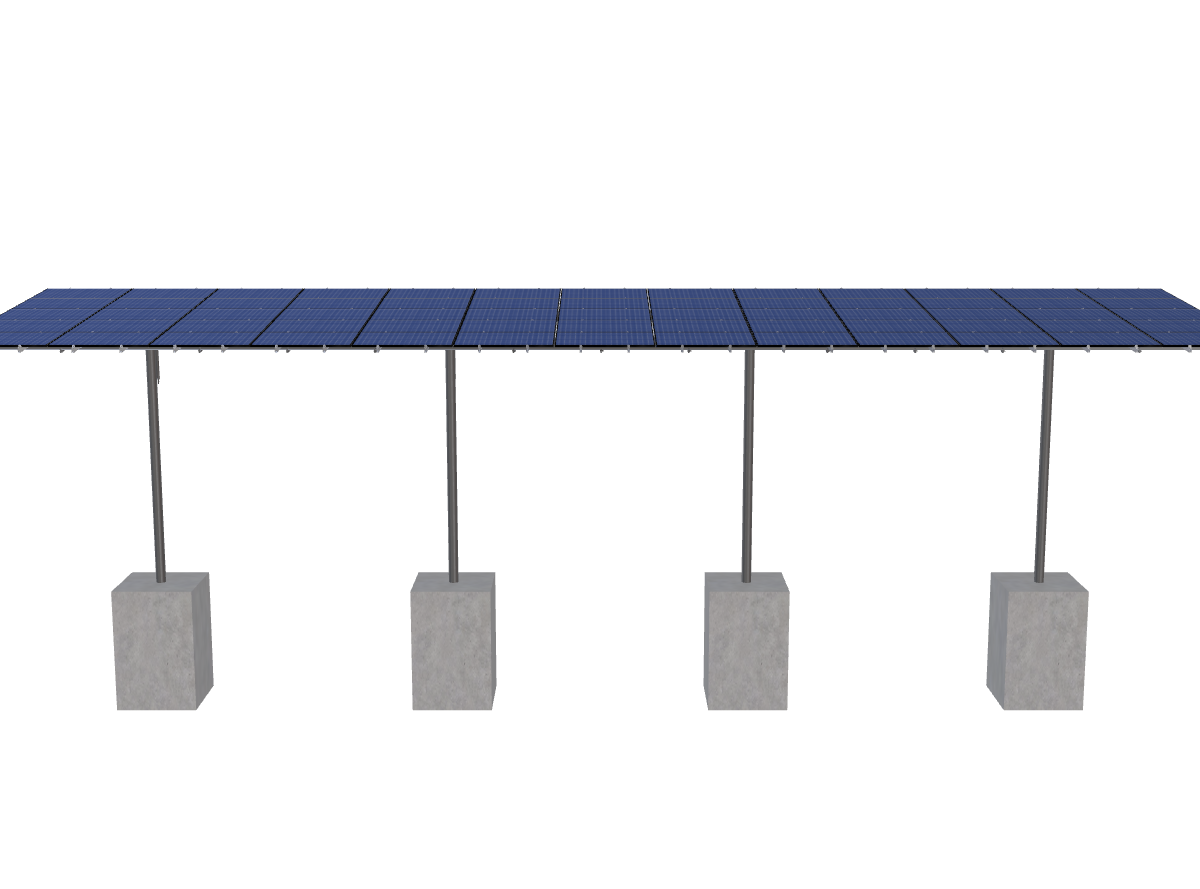

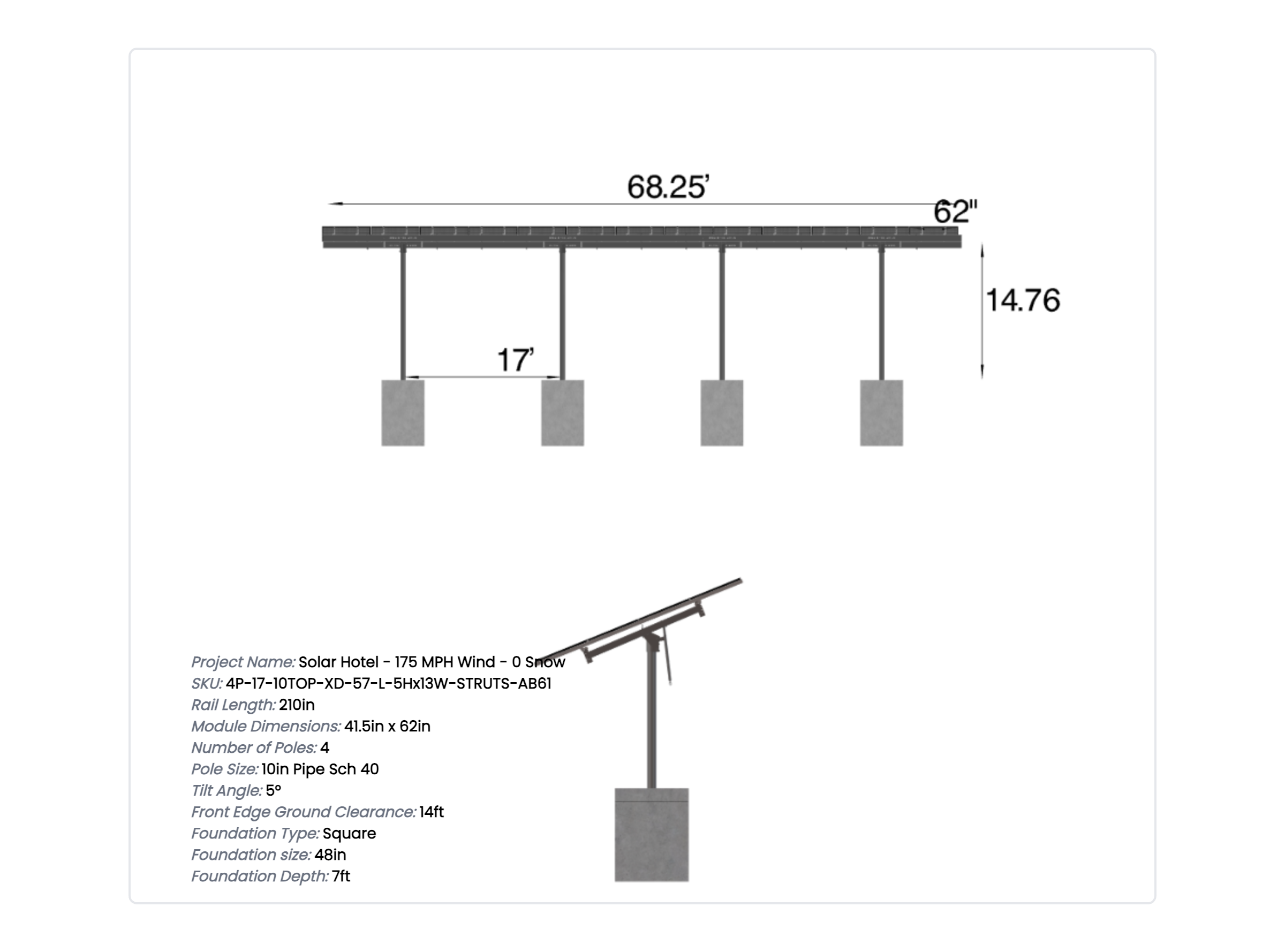

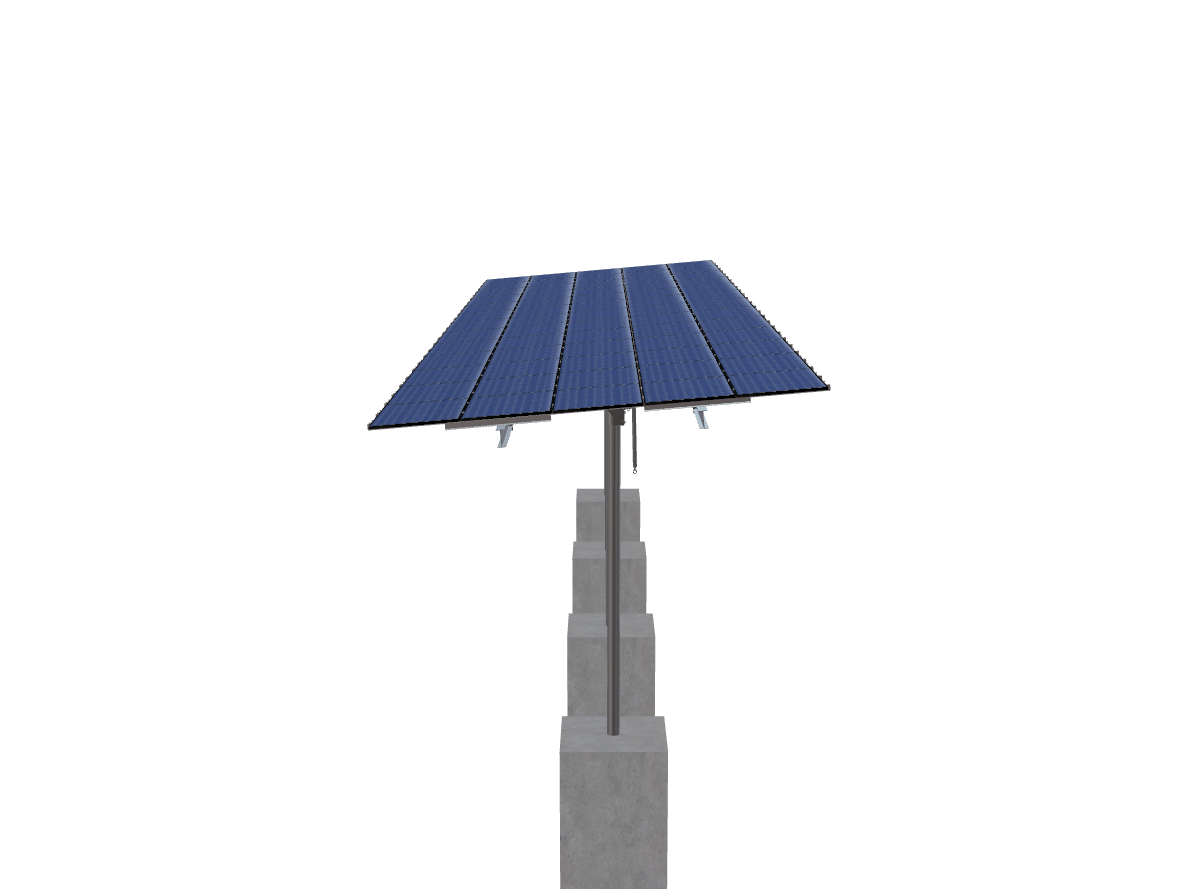

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 62 inches by 41.5 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Solar Hotel – 175 MPH Wind – 0 Snow
$23,874.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 62 inches by 41.5 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4797.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-10TOP-XD-57-L-5HX13W-STRUTS-AB61 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 14.76 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 816.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1194.38 |
| ARRAY WIDTH | 68.25 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 62.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.00 |
| GROUND TO TOP | 15.52 |
| PROJECTED PANEL HEIGHT | 1.51 |
| WIND SPEED OVERRIDE | 175.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | SOLAR, HOTEL, -, 175, MPH, WIND, -, 0, SNOW |
| SITE ADDRESS | MIAMI, FL, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23874.89 |
| TOTAL WEIGHT | 4797.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/a1b4cd5b-c65a-4458-949d-c079d29c4161.pdf |
|
| ID | 7484.00 |
| 3D Solar link |
