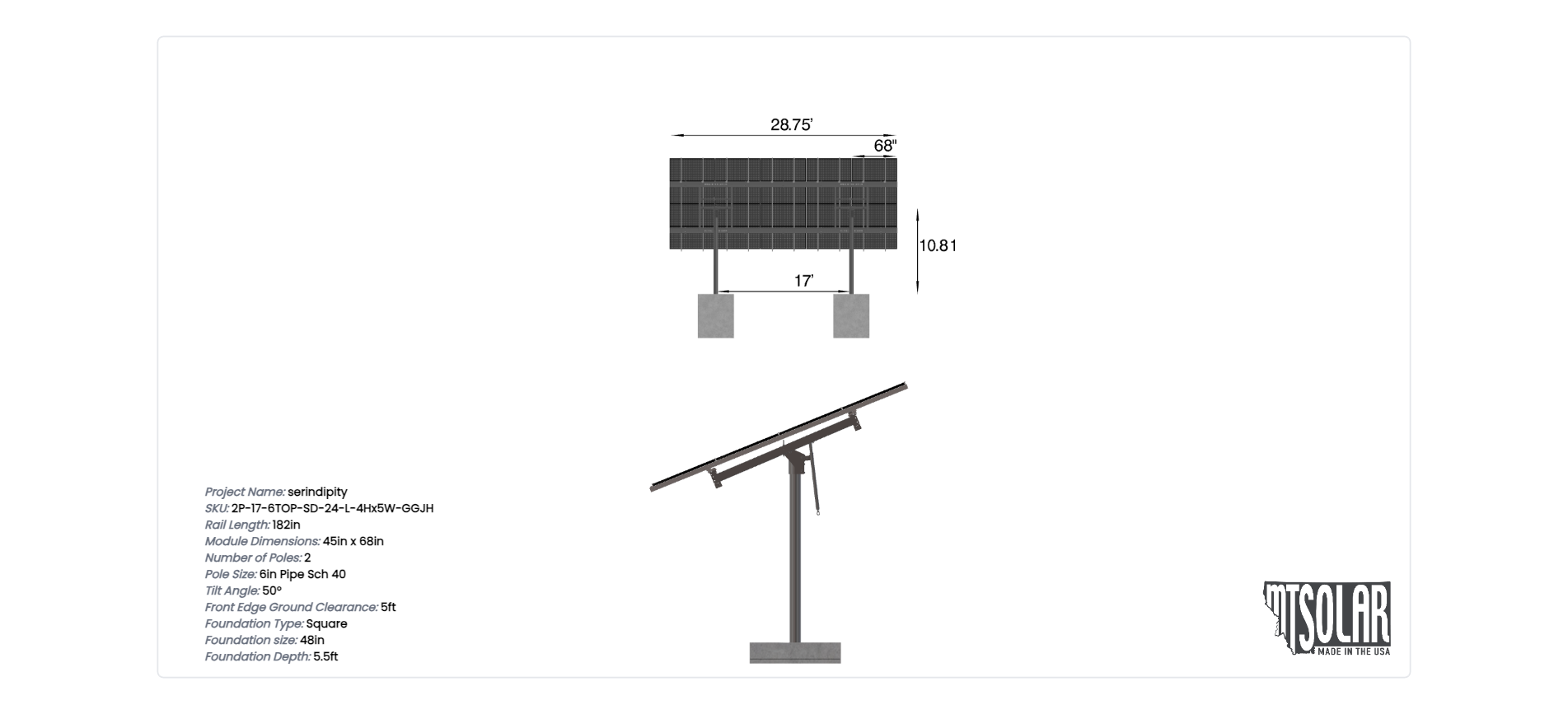

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
serindipity
$7,412.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1287.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-24-L-4HX5W-GGJH |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.81 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 436.04 |
| ARRAY WIDTH | 28.75 |
| ARRAY HEIGHT | 15.17 |
| RAIL LENGTH | 182.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 16.62 |
| PROJECTED PANEL HEIGHT | 11.62 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JOSH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9709013053.00 |
| PROJECT ID | SERINDIPITY |
| SITE ADDRESS | 100, E, COLORADO, AVE, TELLURIDE, CO, 81435, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7412.92 |
| TOTAL WEIGHT | 1287.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b615e9f4-7ebd-471b-9a52-b9da14da7d1a.pdf |
|
| ID | 8807.00 |
| 3D Solar link |
