This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

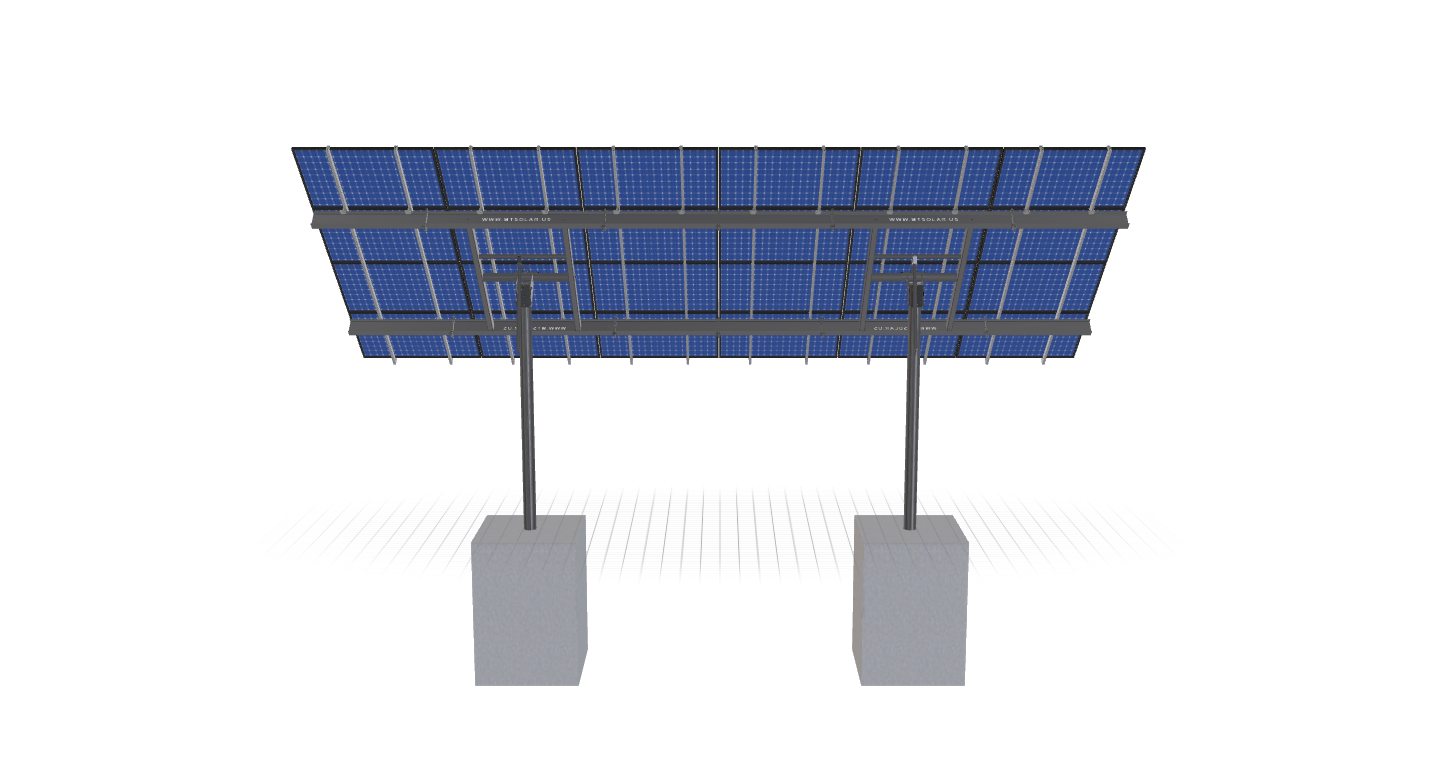

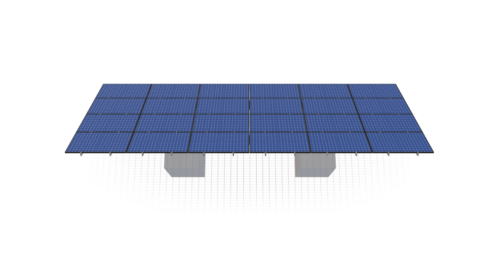

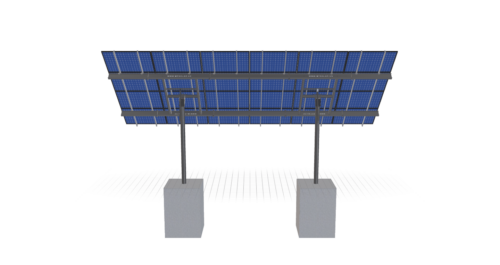

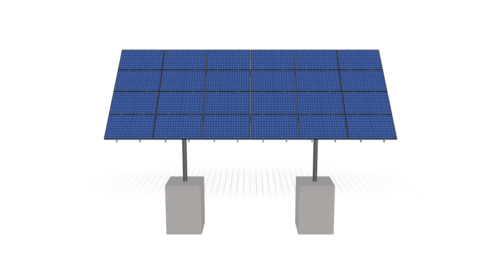

See 3D Model Here
Roberts_24_REV.CU.A
$8,106.53
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1423.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-4HX6W-0A64 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.21 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 44.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 517.50 |
| ARRAY WIDTH | 34.50 |
| ARRAY HEIGHT | 15.00 |
| RAIL LENGTH | 180.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 16.36 |
| PROJECTED PANEL HEIGHT | 10.30 |
| PROJECT ID | ROBERTS, 24, REV.CU.A |
| SITE ADDRESS | 478, ELBOW, CREEK, RD, ROBERTS, MT, 59070, USA |
| MODULE WIDTH | 44.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 102.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 8106.53 |
| TOTAL WEIGHT | 1423.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/747eb39f-51f7-43c4-8003-8eb226823b83.pdf |
|
| ID | 461.00 |
| 3D Solar link |
