This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 43 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

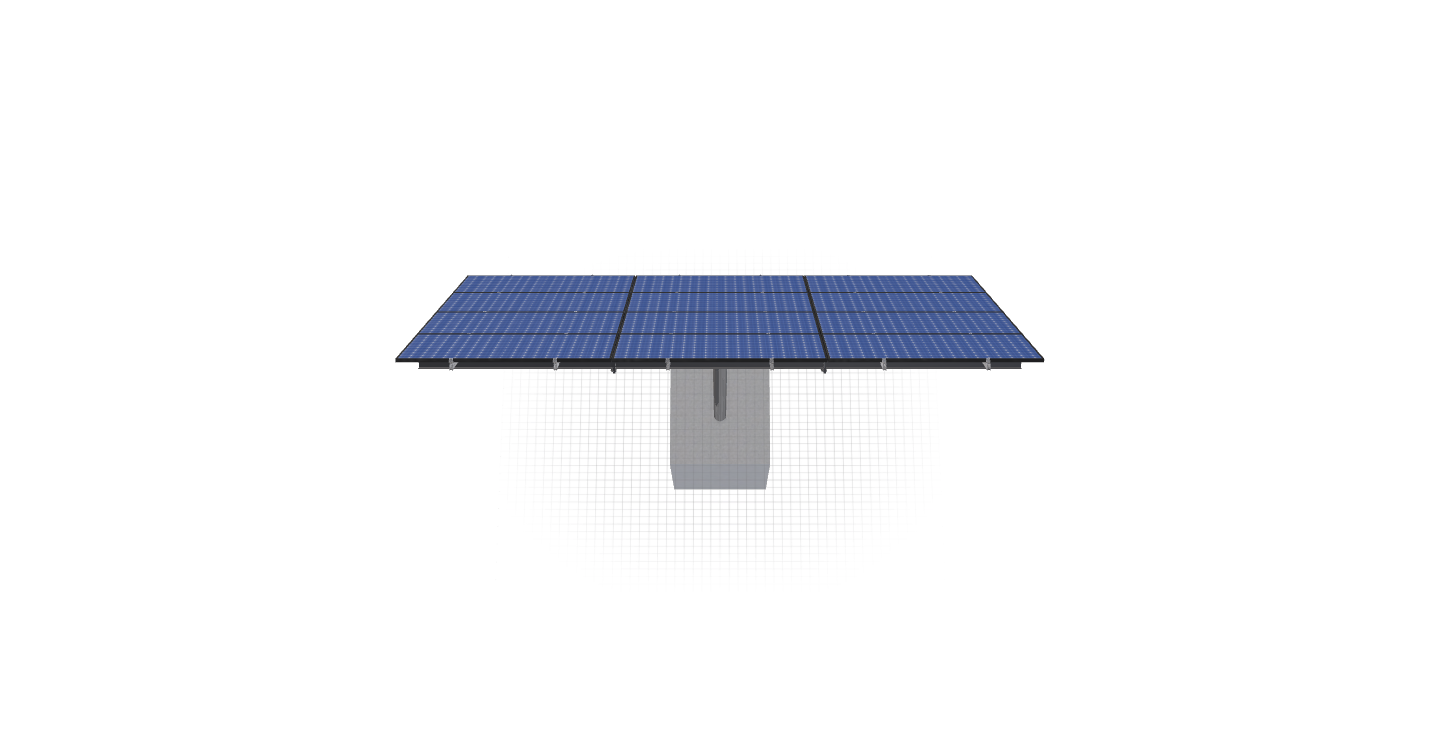

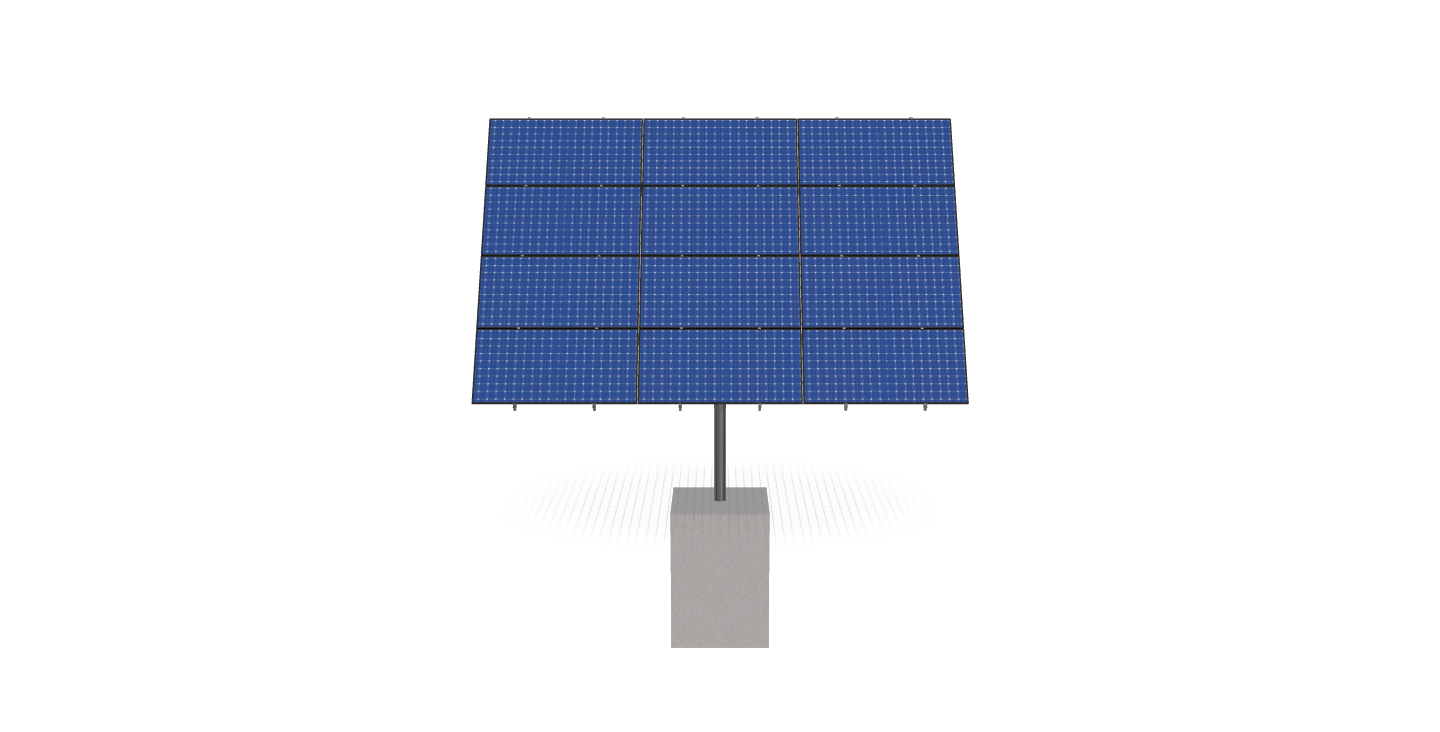

See 3D Model Here
Phillips-RevA
$5,641.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 43 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1069.1100000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-84-L-4HX3W-JE27 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.28 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 315.38 |
| ARRAY WIDTH | 21.75 |
| ARRAY HEIGHT | 14.50 |
| RAIL LENGTH | 174.00 |
| MODULE LENGTH | 86.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.49 |
| PROJECTED PANEL HEIGHT | 12.41 |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PHILLIPS-REVA |
| SITE ADDRESS | 205, W, DURANGO, RIDGE, RD, DURANGO, CO, 81301, USA |
| MODULE WIDTH | 43.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5641.49 |
| TOTAL WEIGHT | 1069.11 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/dc616537-6943-42d5-be82-e8f8f8d05a97.pdf |
|
| ID | 1060.00 |
| 3D Solar link |
