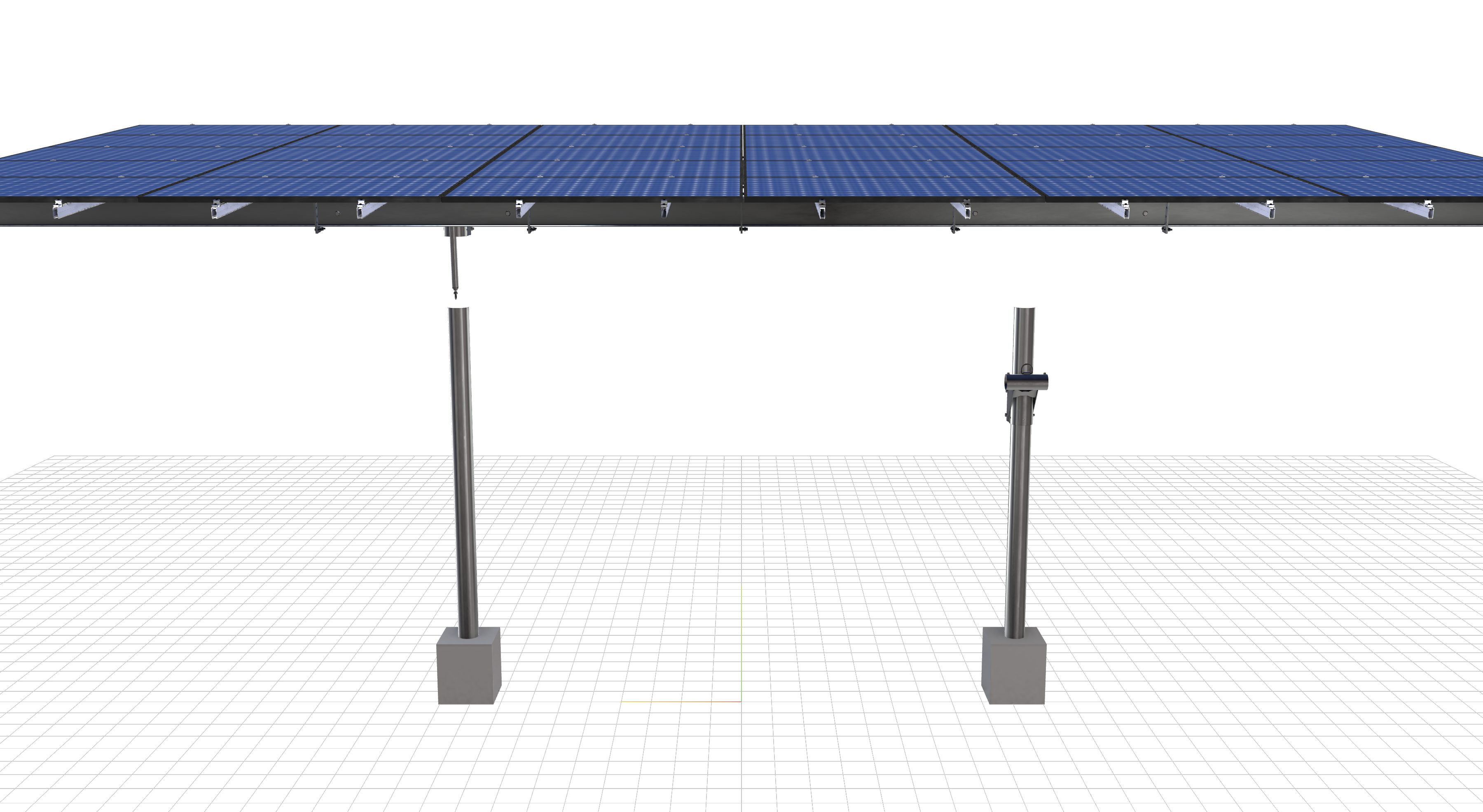

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
OldJeffersonLiftStationLanierContracting%7CRevA
$9,399.37
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1375 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_erjx4defuygwkscw.php |
|
| SKU CODE | 2P-19.75-6TOP-SD-57-L-5Hx6W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 10.76 |
| WING SPAN | 57 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 5 |
| CANTILEVER | 441 |
| GROUND CLEARANCE | 10 |
| NO POLES | 2 |
| MODULE AREA | 650.4515 |
| ARRAY WIDTH | 37.49 |
| ARRAY HEIGHT | 17.349999999999998 |
| RAIL LENGTH | 208.2 |
| MODULE LENGTH | 73.98 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 36.75 |
| GROUND TO_TOP | 11.503073413468988 |
| PROJECTED PANEL_HEIGHT | 1.4939946902661063 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | OldJeffersonLiftStationLanierContracting, RevA |
| SITE ADDRESS | Suwanee, GA, 30024, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 6 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 9399.369999999999 |
| TOTAL WEIGHT | 1858.1399999999999 |
| TOTAL PALLETS | 2 |
| ID | 91 |
