$6,696.38

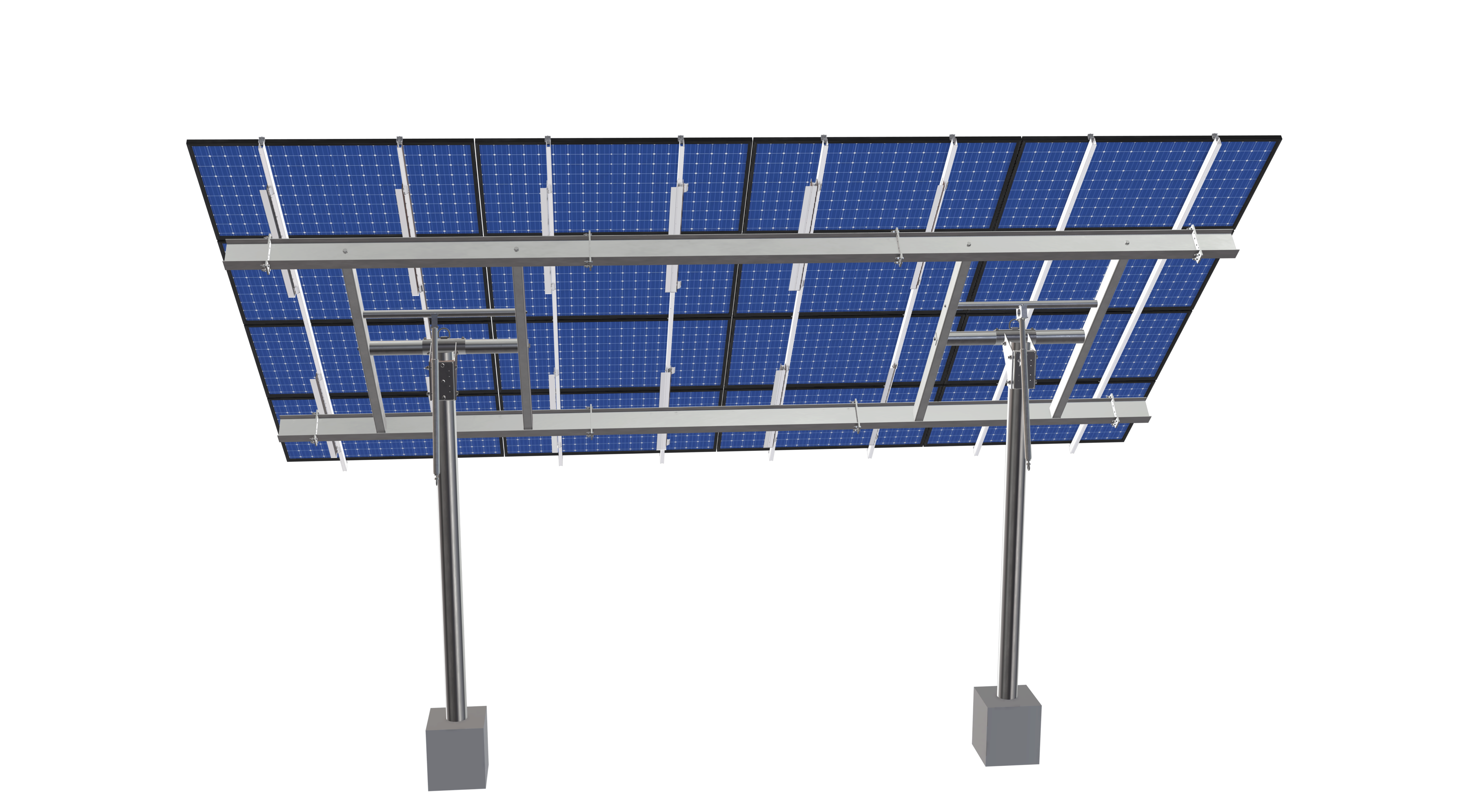

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.06 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.06 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
| Weight | 1428 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-12-L-4HX4W |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 9.90 |
| WING SPAN | 12.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 351.57 |
| ARRAY WIDTH | 25.35 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 75.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 14.75 |
| PROJECTED PANEL HEIGHT | 9.69 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, C227DAIKGF3 |
| SITE ADDRESS | 258, HATTIE, LN, HAMILTON, MT, 59840, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6696.38 |
| TOTAL WEIGHT | 1155.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/23c3e977-f202-49ca-83b3-570c98f92238.pdf |
|
| ID | 268.00 |
| _length | 90 |
| _width | 24 |
| _height | 24 |
| _ltl_freight | 65 |
| _nmfc_number | 160270 |
| _nestedDimension | length |
