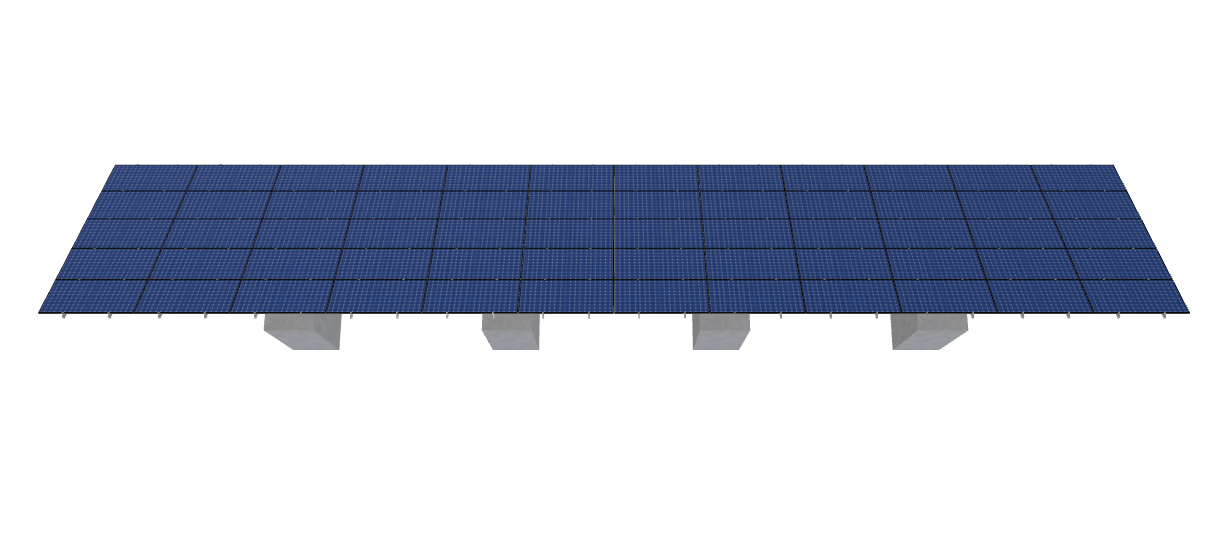

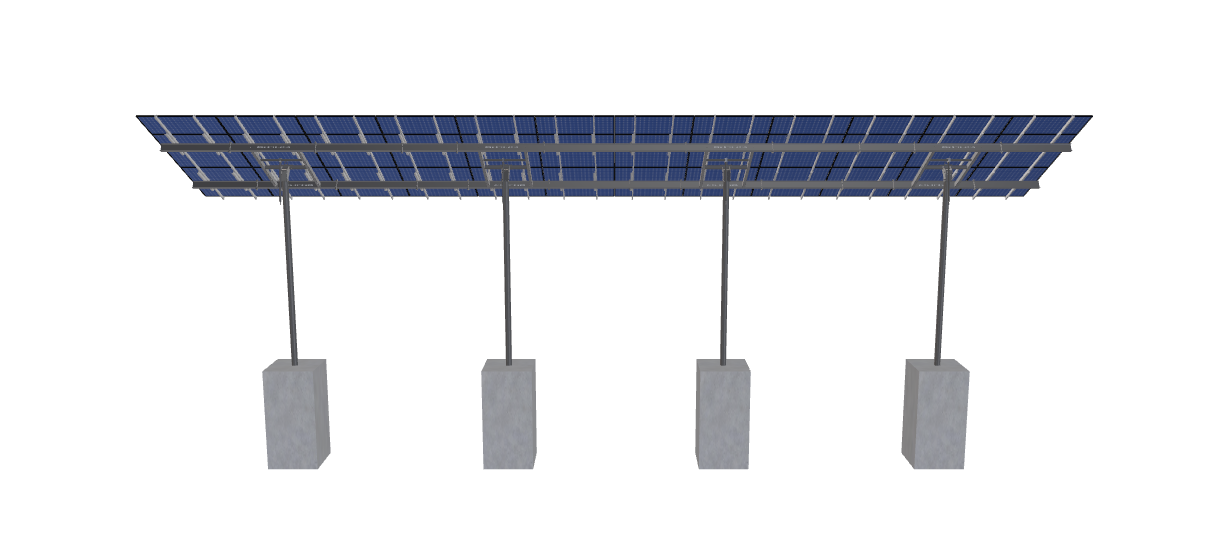

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.1 inches by 39.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_8D2CK4GA5141
$24,385.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.1 inches by 39.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4954.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-XD-72-L-5HX12W-245A |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 18.17 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1335.00 |
| ARRAY WIDTH | 80.10 |
| ARRAY HEIGHT | 16.67 |
| RAIL LENGTH | 200.00 |
| MODULE LENGTH | 79.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 22.28 |
| PROJECTED PANEL HEIGHT | 8.23 |
| PROJECT ID | MTSOLAR, 8D2CK4GA5141 |
| SITE ADDRESS | PW2R+JH, COACHELLA, CA, USA |
| MODULE WIDTH | 39.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 24385.20 |
| TOTAL WEIGHT | 4954.28 |
| TOTAL PALLETS | 4.00 |
