MTSOLAR_716DEG82HJFK

$11,995.88

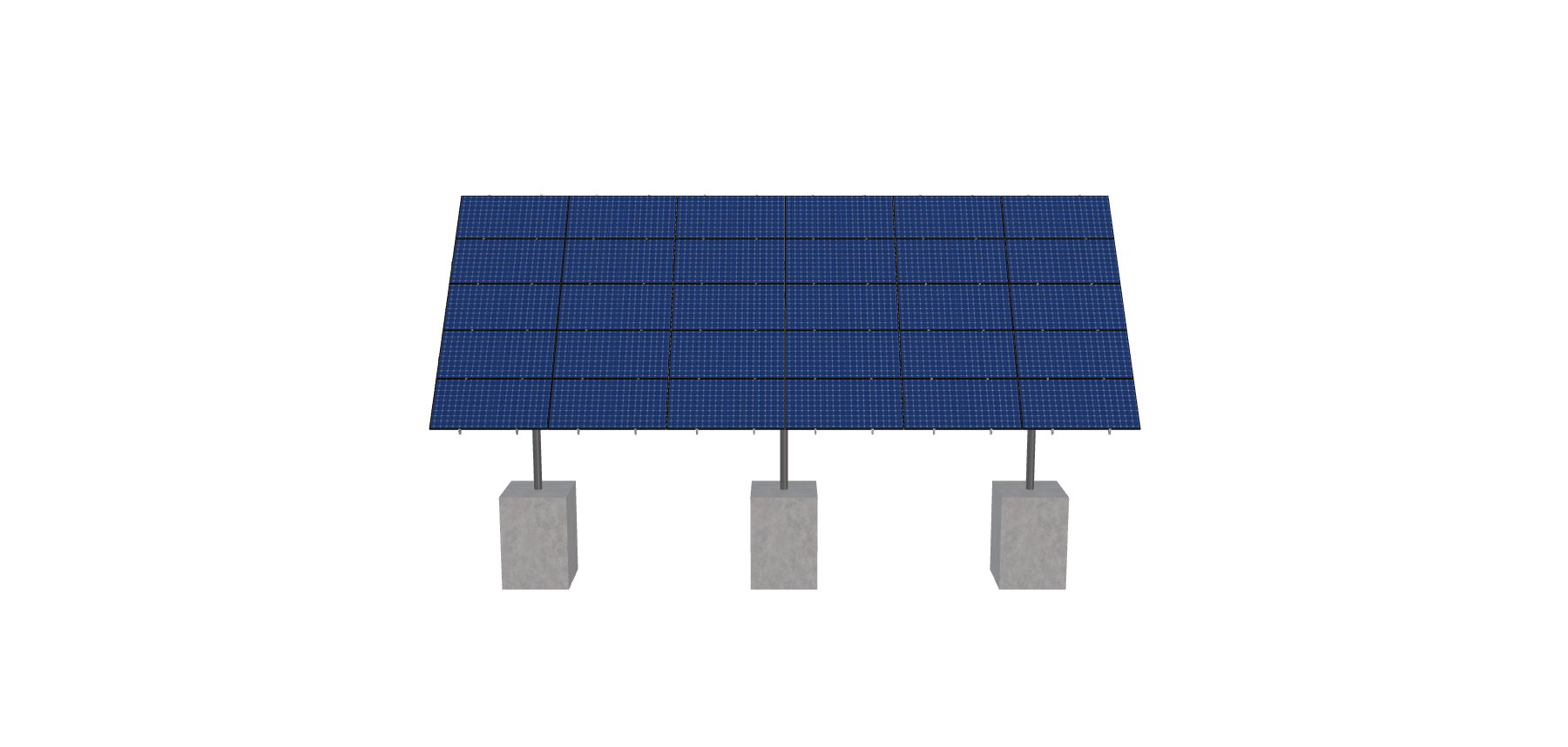

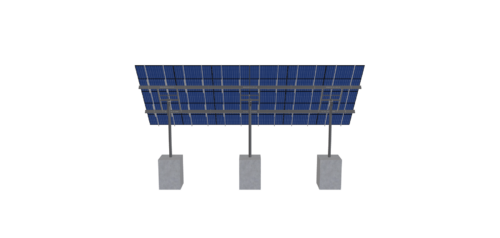

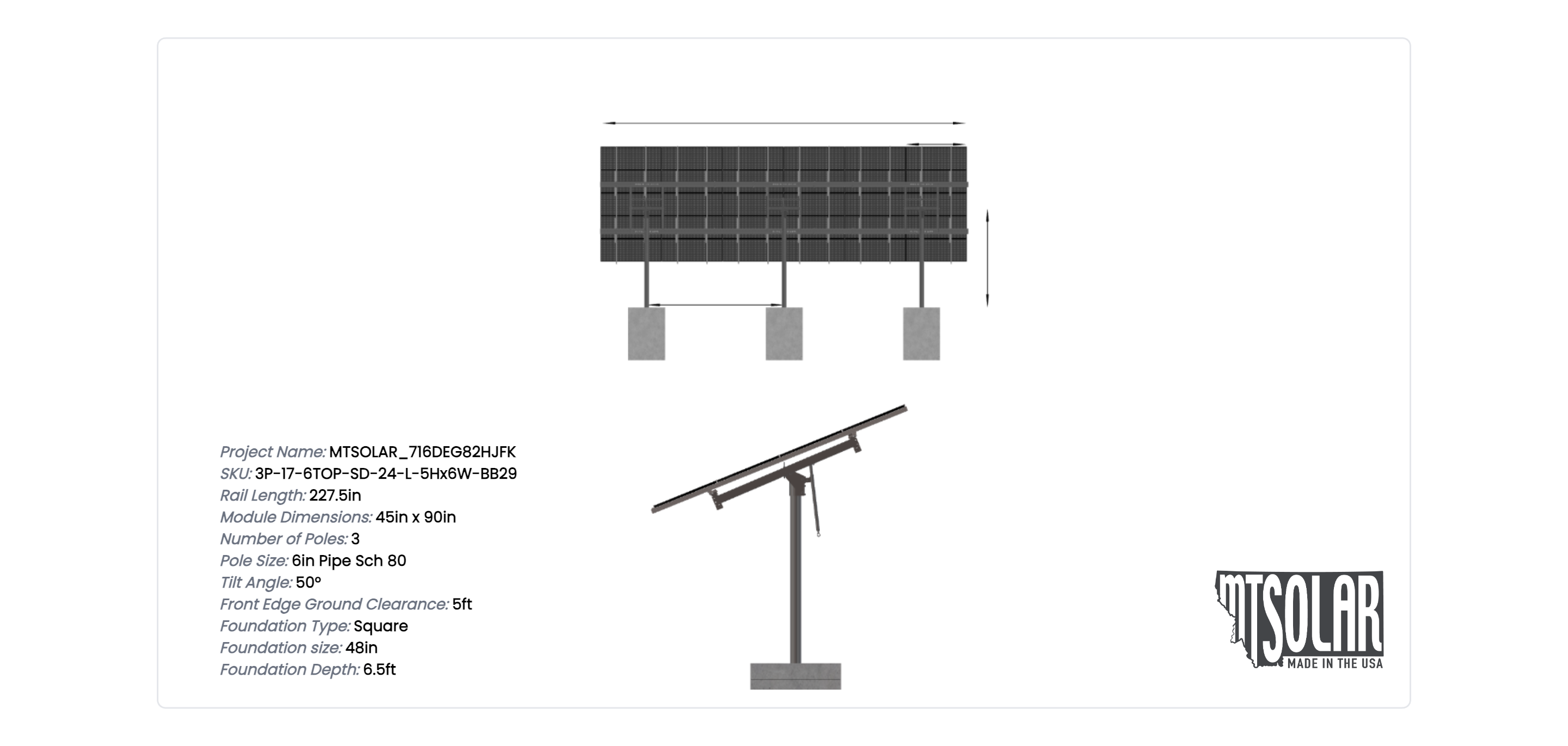

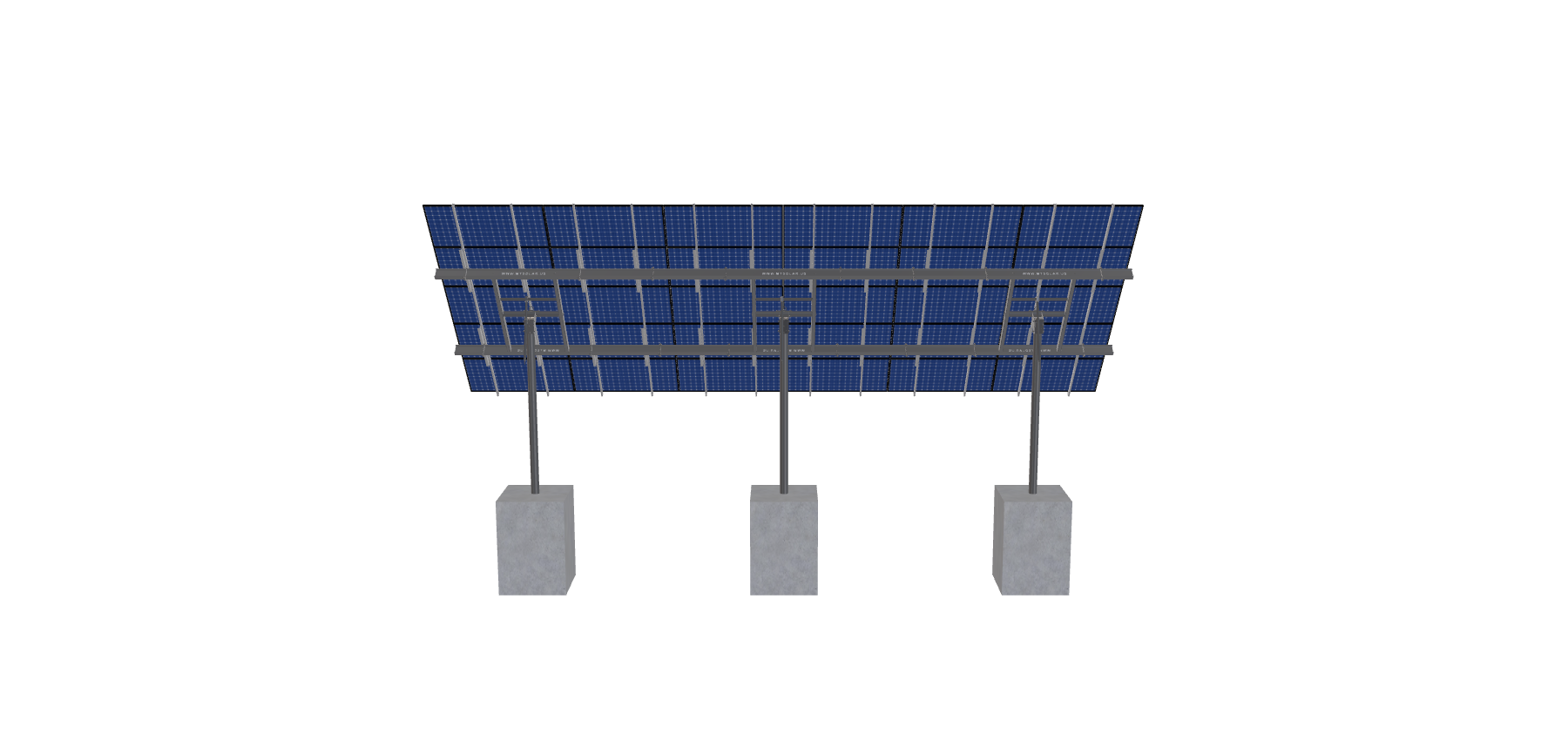

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-17-6TOP-SD-24-L-5Hx6W-BB29 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2321.64 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-6TOP-SD-24-L-5HX6W-BB29

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

12.26

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

50.00

CANTILEVER

546.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

862.60

ARRAY WIDTH

45.50

ARRAY HEIGHT

18.96

RAIL LENGTH

227.50

MODULE LENGTH

90.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

45.50

GROUND TO TOP

19.52

PROJECTED PANEL HEIGHT

14.52

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

60.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME
DESIGNER EMAIL

CHRISTINA@MTSOLAR.US

DESIGNER PHONE
PROJECT ID

MTSOLAR, 716DEG82HJFK

SITE ADDRESS

1578, CO, RD, 55, LEADVILLE, CO, 80461, USA

MODULE WIDTH

45.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

11995.88

TOTAL WEIGHT

2321.64

TOTAL PALLETS

3.00
