This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

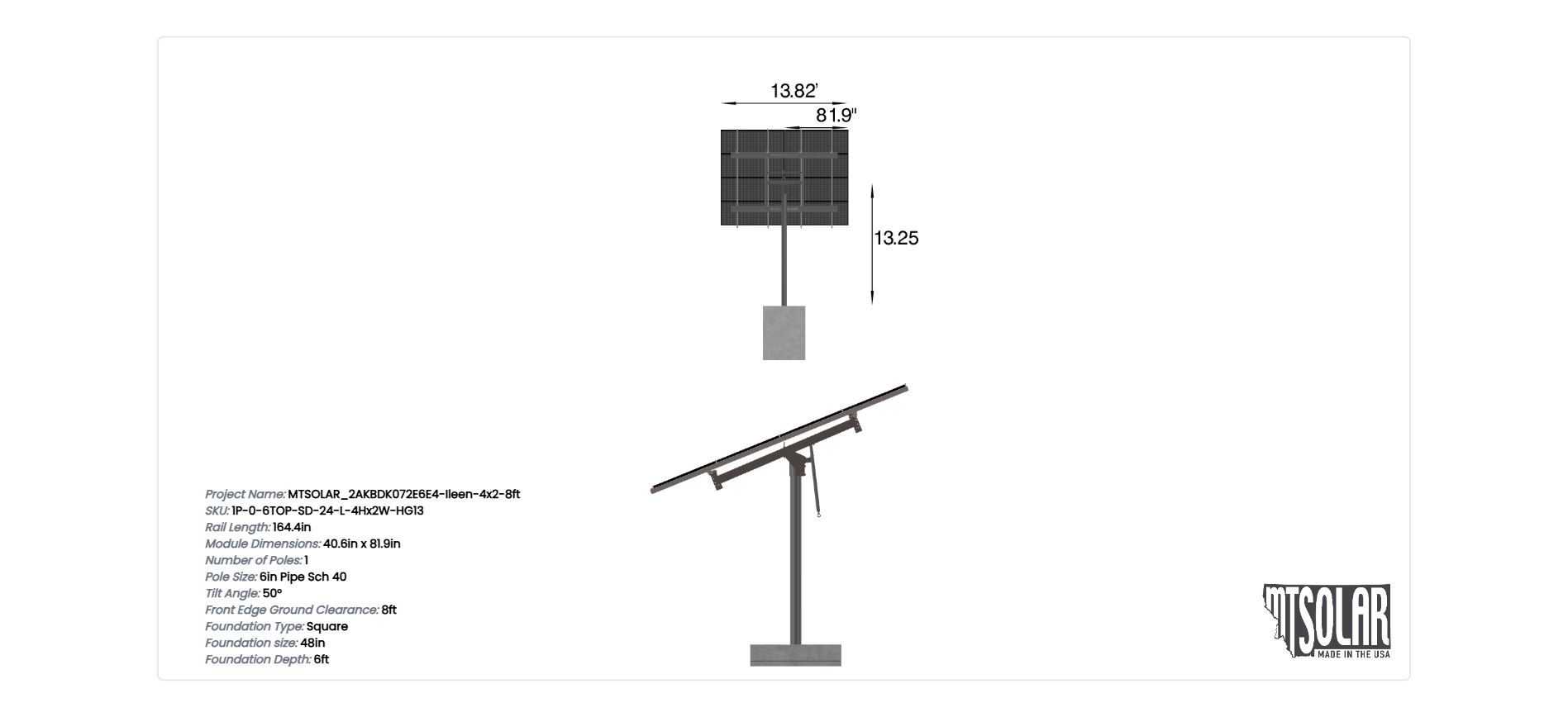

See 3D Model Here
MTSOLAR_2AKBDK072E6E4-Ileen-4×2-8ft
$3,306.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 563.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-4HX2W-HG13 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.25 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 189.29 |
| ARRAY WIDTH | 13.82 |
| ARRAY HEIGHT | 13.70 |
| RAIL LENGTH | 164.40 |
| MODULE LENGTH | 81.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 18.49 |
| PROJECTED PANEL HEIGHT | 10.49 |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 210.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 2AKBDK072E6E4-ILEEN-4X2-8FT |
| SITE ADDRESS | MT, PLEASANT, UT, 84647, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3306.69 |
| TOTAL WEIGHT | 563.44 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/8961f1f8-6e9d-48d1-bcb0-cb9856a40918.pdf |
|
| ID | 8726.00 |
| 3D Solar link |
