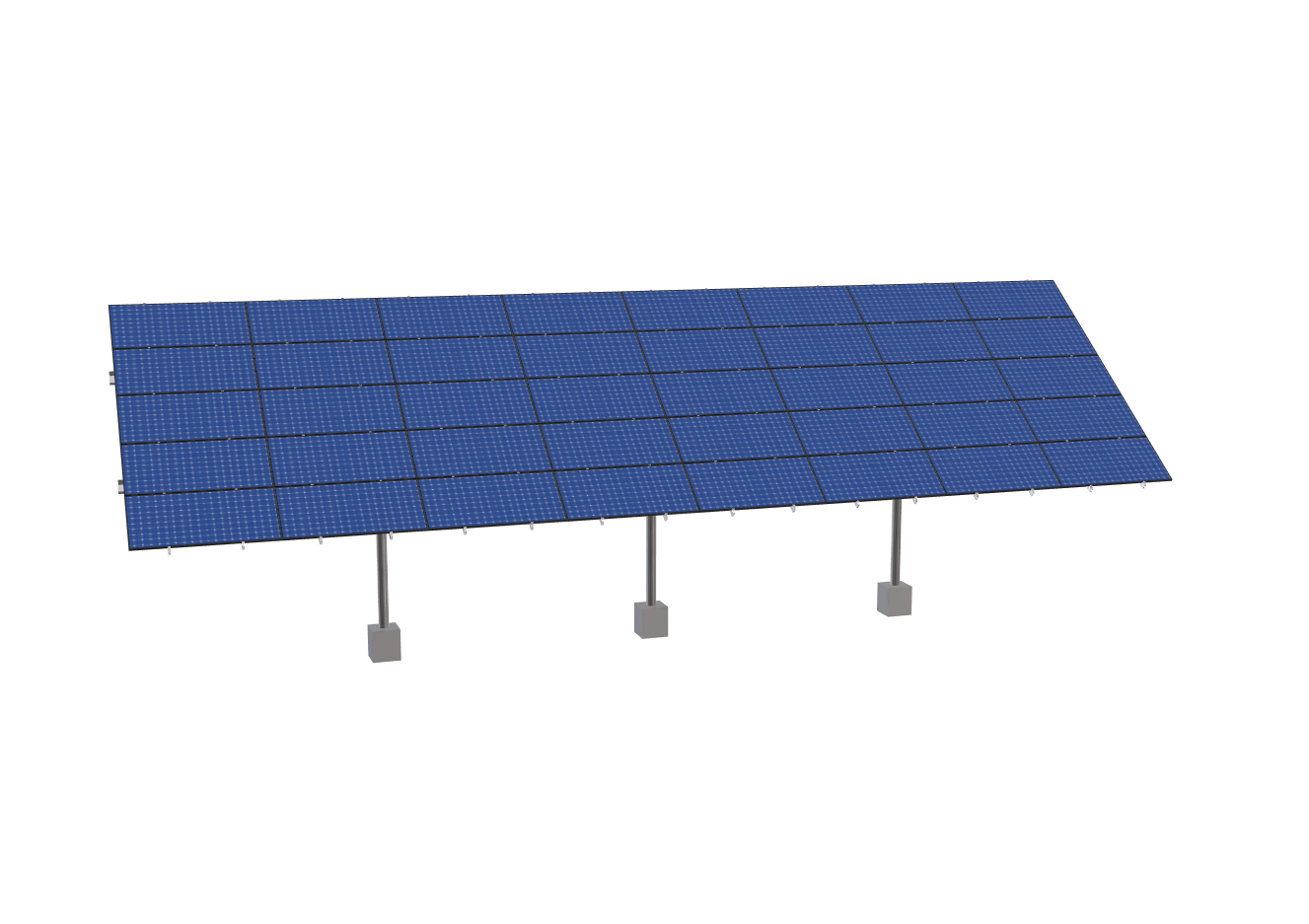

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Mainsolar-JB-RevA
$17,297.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 3499.37 lbs |
|---|---|
https://SOLVER.SKYCIV.COM/TEMP/MERGEDPDF, M4I7IQWBXOG4COGK.PHP |
|
| SKU CODE | 3P-19.75-8TOP-XD-57-L-5HX8W |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 11.24 |
| WING SPAN | 57.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| TILT ANGLE | 37.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 985.78 |
| ARRAY WIDTH | 56.60 |
| ARRAY HEIGHT | 17.42 |
| RAIL LENGTH | 209.00 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 16.42 |
| PROJECTED PANEL HEIGHT | 10.36 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MAINSOLAR-JB-REVA |
| SITE ADDRESS | 28385, POST, OFFICE, RD, MASS, CITY, MI, 49948, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17297.04 |
| TOTAL WEIGHT | 3499.37 |
| TOTAL PALLETS | 3.00 |
| ID | 219.00 |
