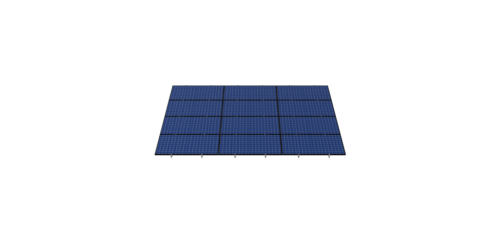

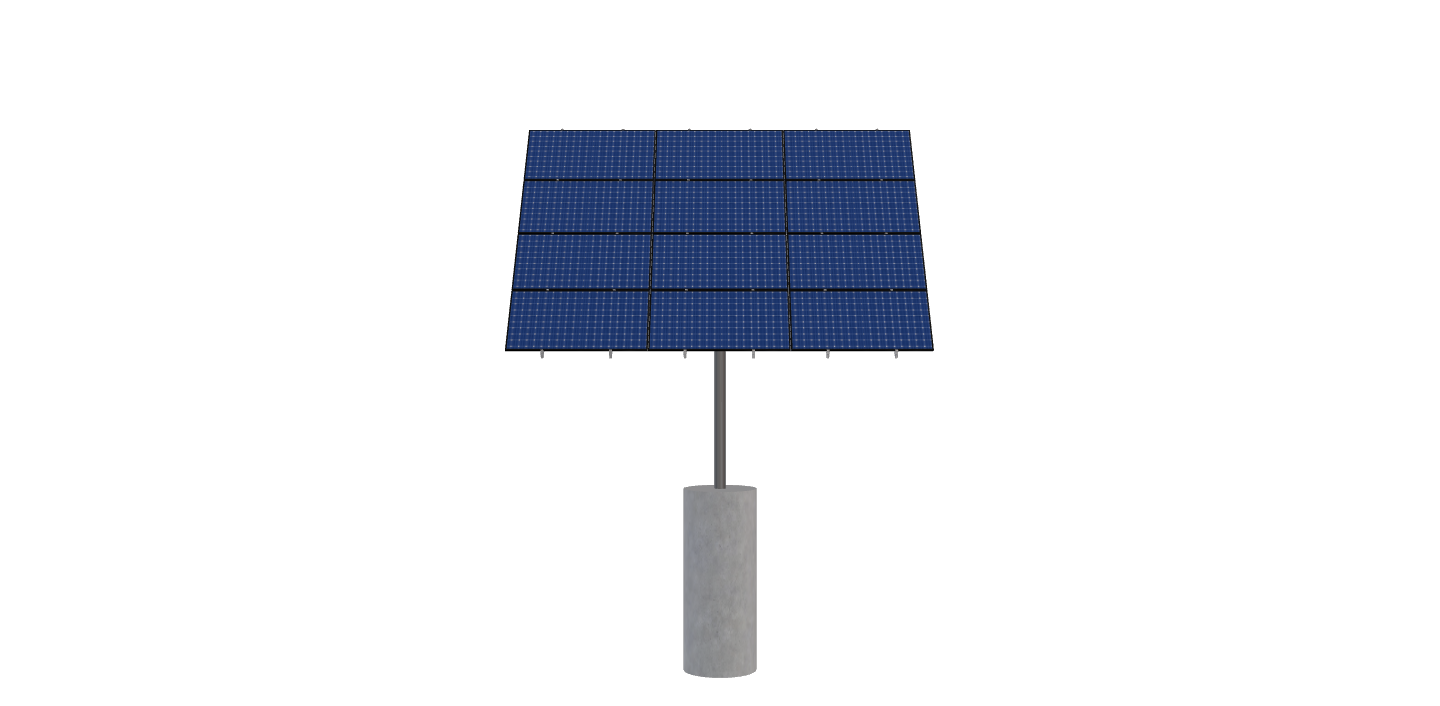

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
: Kurt Clark W11707B
$4,150.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 729.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-SD-57-L-4HX3W-7AHG |
| DUTY SIZE | SD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.71 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 269.61 |
| ARRAY WIDTH | 19.35 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 76.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 17.35 |
| PROJECTED PANEL HEIGHT | 11.28 |
| PROJECT ID | :, KURT, CLARK, W11707B |
| SITE ADDRESS | 12669, MT, HAMILTON, RD, SAN, JOSE, CA, 95140, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 87.00 |
| SNOW LOAD OVERRIDE | 3.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4150.56 |
| TOTAL WEIGHT | 729.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/3d869e46-4996-4ffe-84e3-574f8982f923.pdf |
|
| ID | 1704.00 |
| CAD URL | |
| 3D Solar link |
