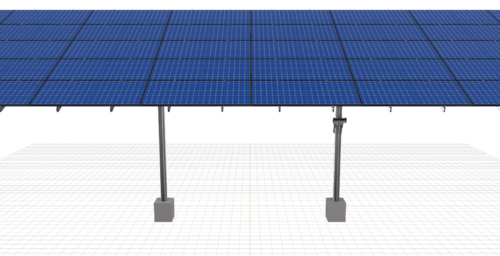

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40.8 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
HorizonsCommunityChurch_RevA.
$22,680.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40.8 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 4430 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_eygv5sxn11k4k4ko.php |
|
| SKU CODE | 4P-19.75-8TOP-XD-45-L-5Hx10W |
| DUTY SIZE | XD |
| POLE SIZE | 8in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 4 |
| POLE SPACING | 15 |
| POLE HEIGHT | 13.64 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 25 |
| CANTILEVER | 891 |
| GROUND CLEARANCE | 10 |
| NO POLES | 4 |
| MODULE AREA | 1290.625 |
| ARRAY WIDTH | 75 |
| ARRAY HEIGHT | 17.208333333333332 |
| RAIL LENGTH | 206.5 |
| MODULE LENGTH | 89 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 74.25 |
| GROUND TO_TOP | 17.22853318518988 |
| PROJECTED PANEL_HEIGHT | 7.184510449591892 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | HorizonsCommunityChurch_RevA. |
| SITE ADDRESS | 3200, Grainger, Pkwy, Lincoln, NE, 68516, USA |
| MODULE WIDTH | 40.8 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 10 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 22680.99 |
| TOTAL WEIGHT | 4583.4 |
| TOTAL PALLETS | 4 |
| ID | 126 |
