This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 42.7 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

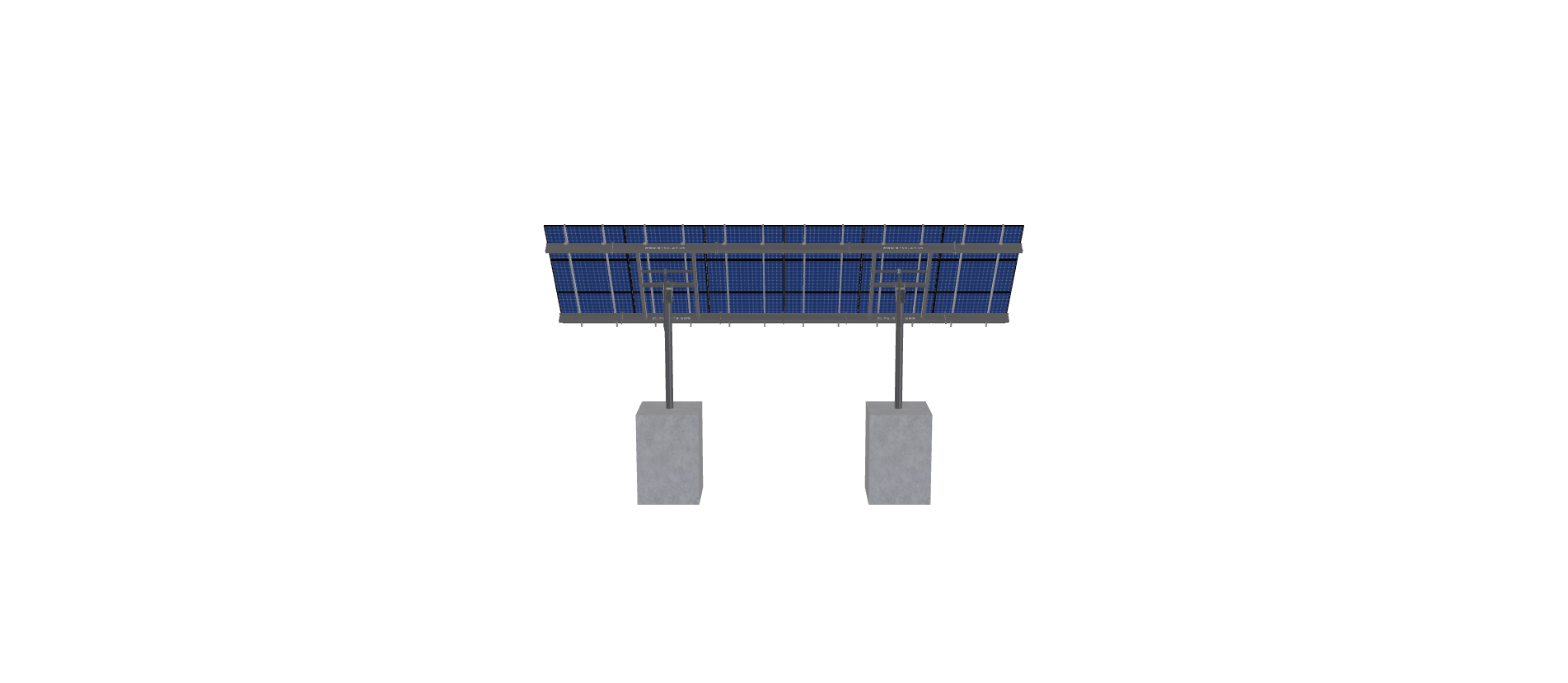

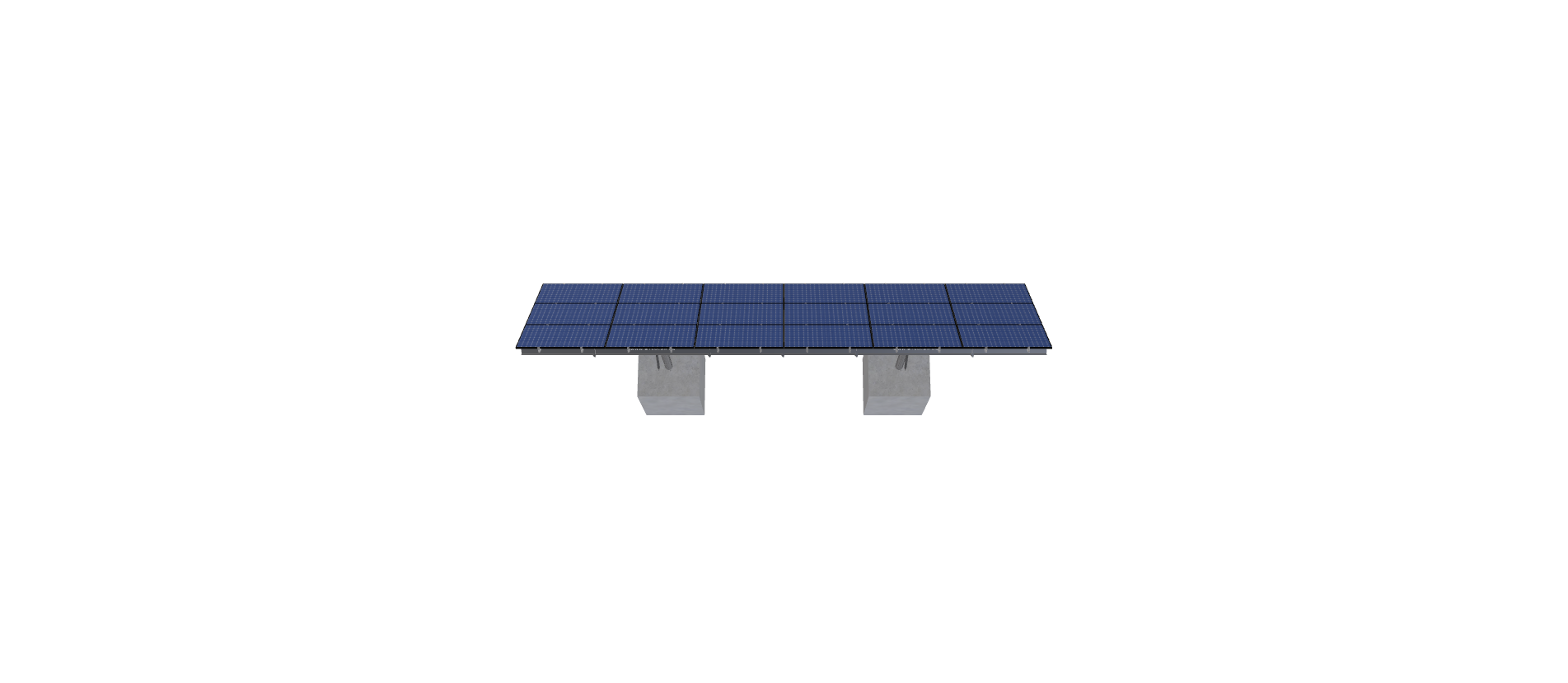

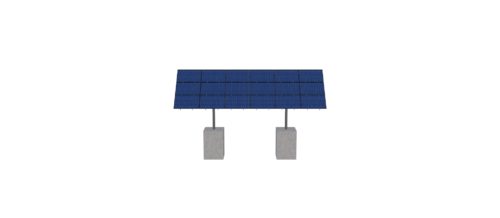

See 3D Model Here
Holden Caine part 2
$9,139.05
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 42.7 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1683.74 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-HD-57-L-3HX6W-2FFD |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.14 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 371.52 |
| ARRAY WIDTH | 34.40 |
| ARRAY HEIGHT | 10.80 |
| RAIL LENGTH | 129.60 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 13.27 |
| PROJECTED PANEL HEIGHT | 8.27 |
| DESIGNER NAME | ADAM, MEYER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 720.408.2510 |
| PROJECT ID | HOLDEN, CAINE, PART, 2 |
| SITE ADDRESS | 8355, STONERIDGE, TERRACE, BOULDER, CO, 80302, USA |
| MODULE WIDTH | 42.70 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 165.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9139.05 |
| TOTAL WEIGHT | 1683.74 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/4a27bdda-6e33-4664-b24b-a71d9d8520df.pdf |
|
| ID | 8246.00 |
| 3D Solar link |
