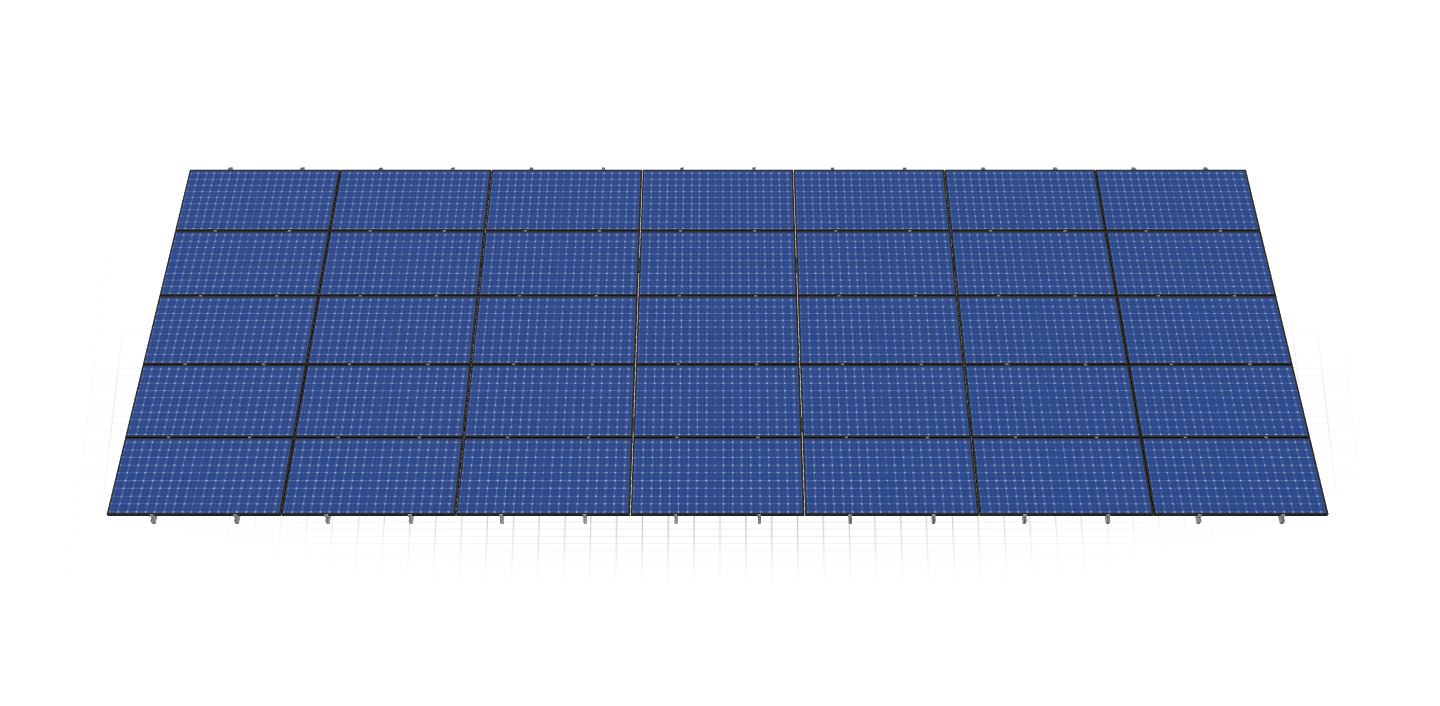

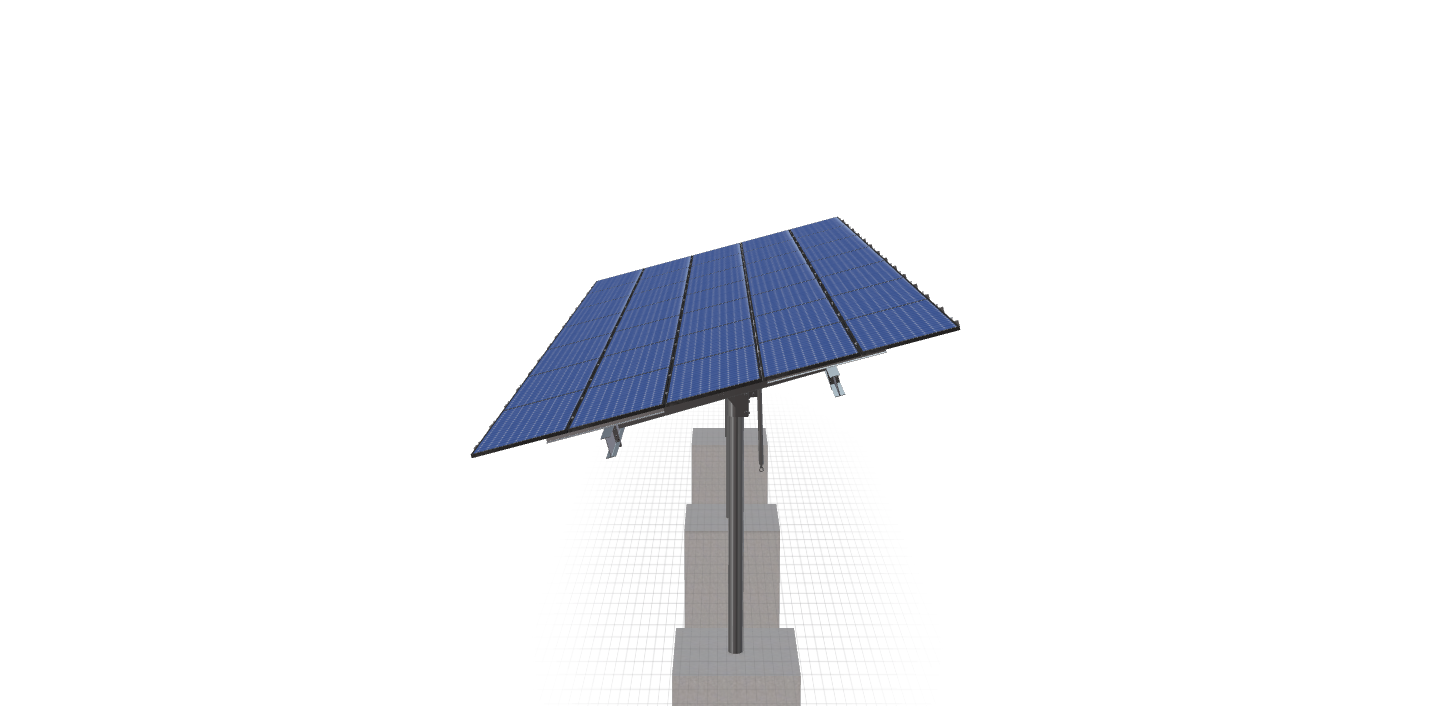

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.01 inches by 39.06 inches and an array layout of 7 wide by 5 high.

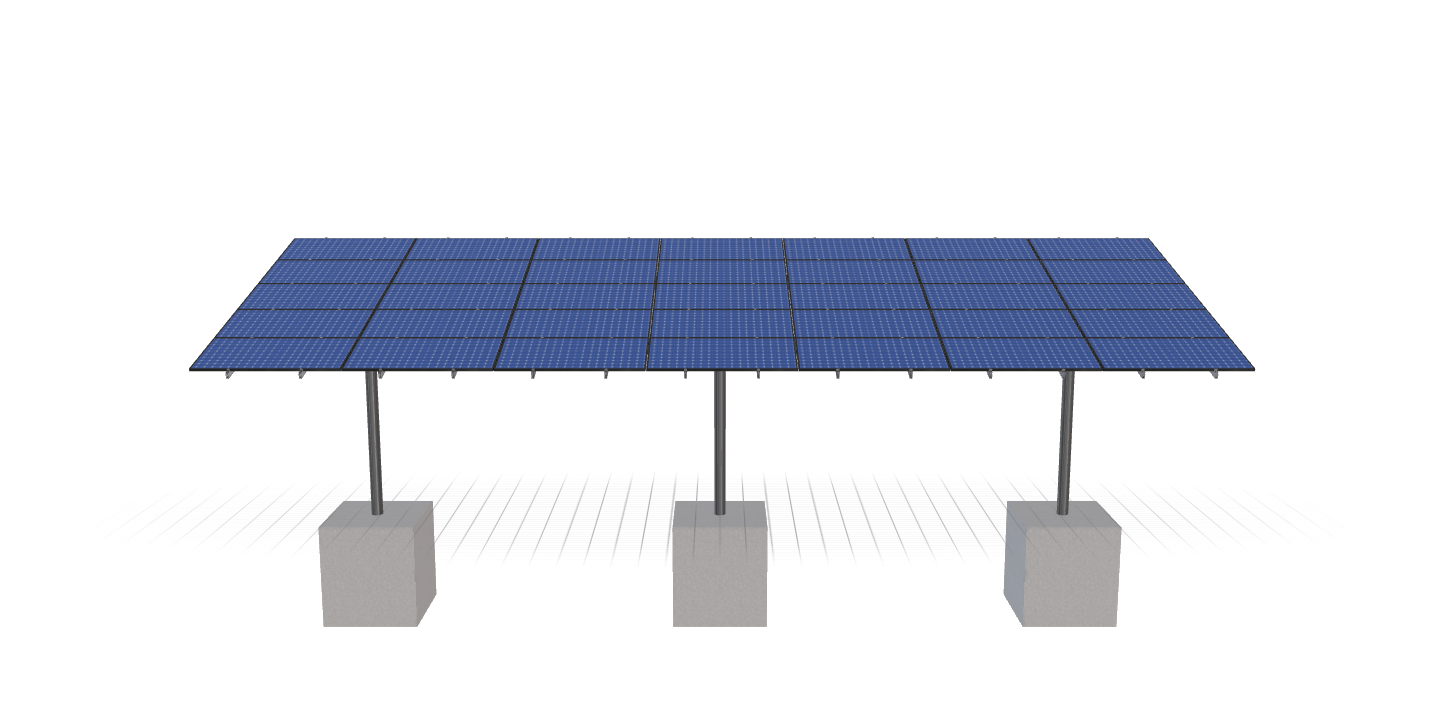

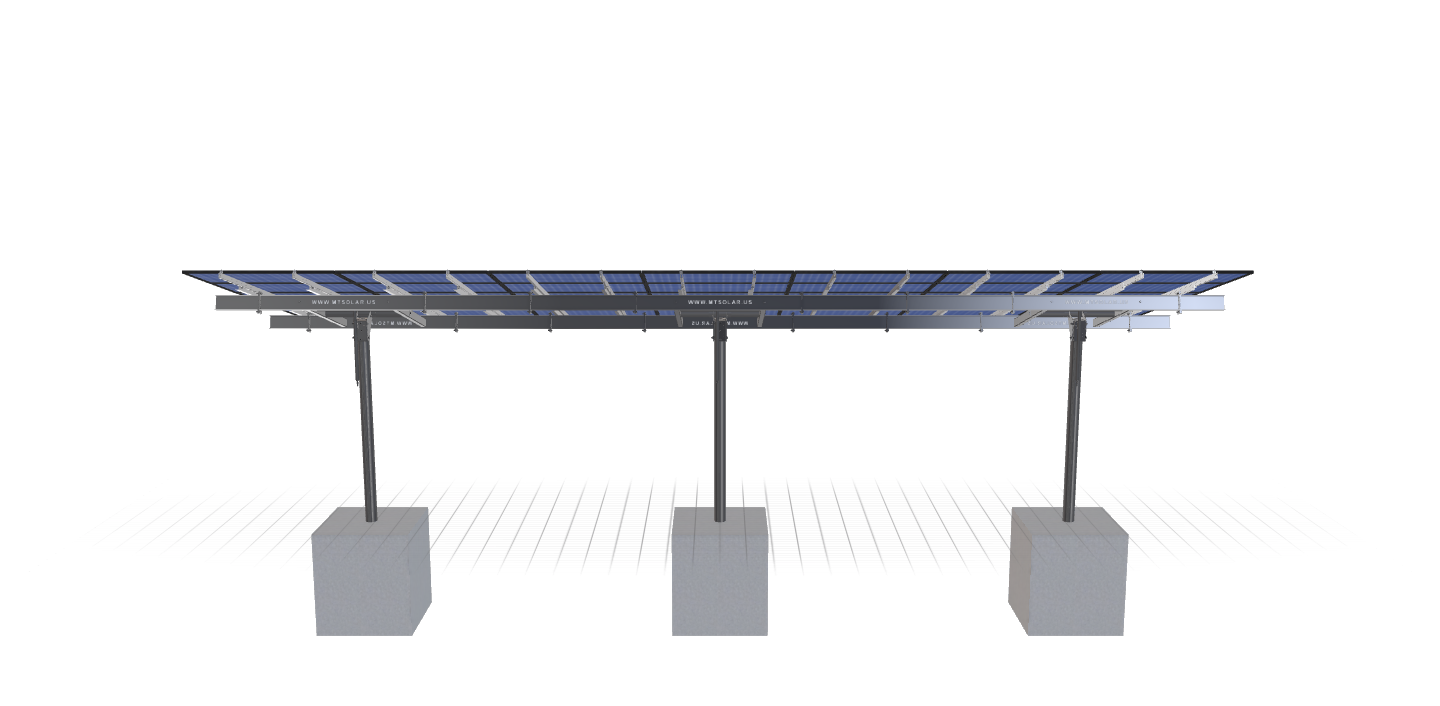

This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Goat BatteryBaggaA
$14,039.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77.01 inches by 39.06 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2780.85 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-HD-24-L-5HX7W-A33D |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.13 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 750.09 |
| ARRAY WIDTH | 45.51 |
| ARRAY HEIGHT | 16.48 |
| RAIL LENGTH | 197.80 |
| MODULE LENGTH | 77.01 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 12.24 |
| PROJECTED PANEL HEIGHT | 4.21 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | GOAT, BATTERYBAGGAA |
| SITE ADDRESS | 611, CREEK, LN, FLOURTOWN, PA, 19031, USA |
| MODULE WIDTH | 39.06 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 14039.39 |
| TOTAL WEIGHT | 2780.85 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/62cfe20c-fbb8-4c07-9315-21b2a17e86ea.pdf |
|
| ID | 1230.00 |
| 3D Solar link |
