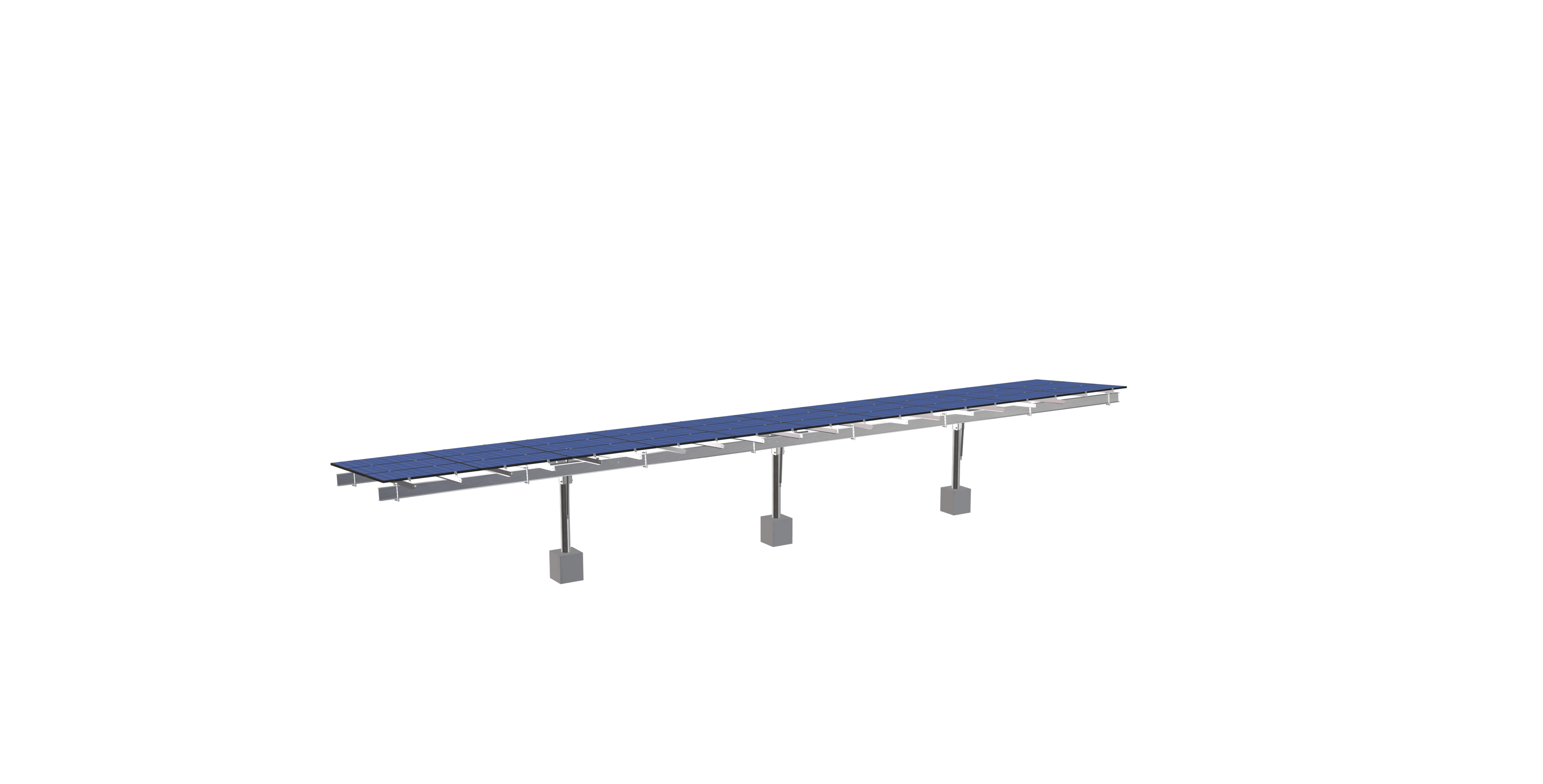

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.04 inches by 38.66 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
FlosConchShack-JB-RevD
$15,519.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.04 inches by 38.66 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 2894.0499999999997 lbs |
|---|---|
| SKU CODE | 3P-19.75-6TOP-XD-45-L-3HX10W |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 5.43 |
| WING SPAN | 45.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| TILT ANGLE | 5.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 538.78 |
| ARRAY WIDTH | 55.03 |
| ARRAY HEIGHT | 9.79 |
| RAIL LENGTH | 117.48 |
| MODULE LENGTH | 65.04 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 5.85 |
| PROJECTED PANEL HEIGHT | 0.84 |
| WIND SPEED OVERRIDE | 180.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | FLOSCONCHSHACK-JB-REVD |
| SITE ADDRESS | 3301, NW, S, RIVER, DR, MIAMI, FL, 33142, USA |
| MODULE WIDTH | 38.66 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15519.39 |
| TOTAL WEIGHT | 2894.05 |
| TOTAL PALLETS | 3.00 |
https://SKYCIVQUOTES.S3.AMAZONAWS.COM/D974E06E-5089-48B2-8C26-658441F7A6A8.PDF |
|
| ID | 249.00 |
