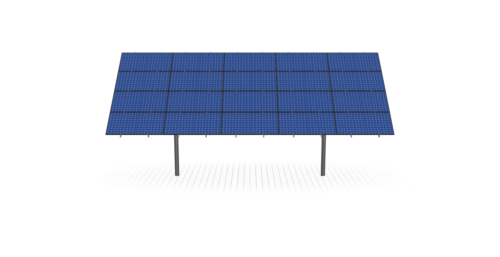

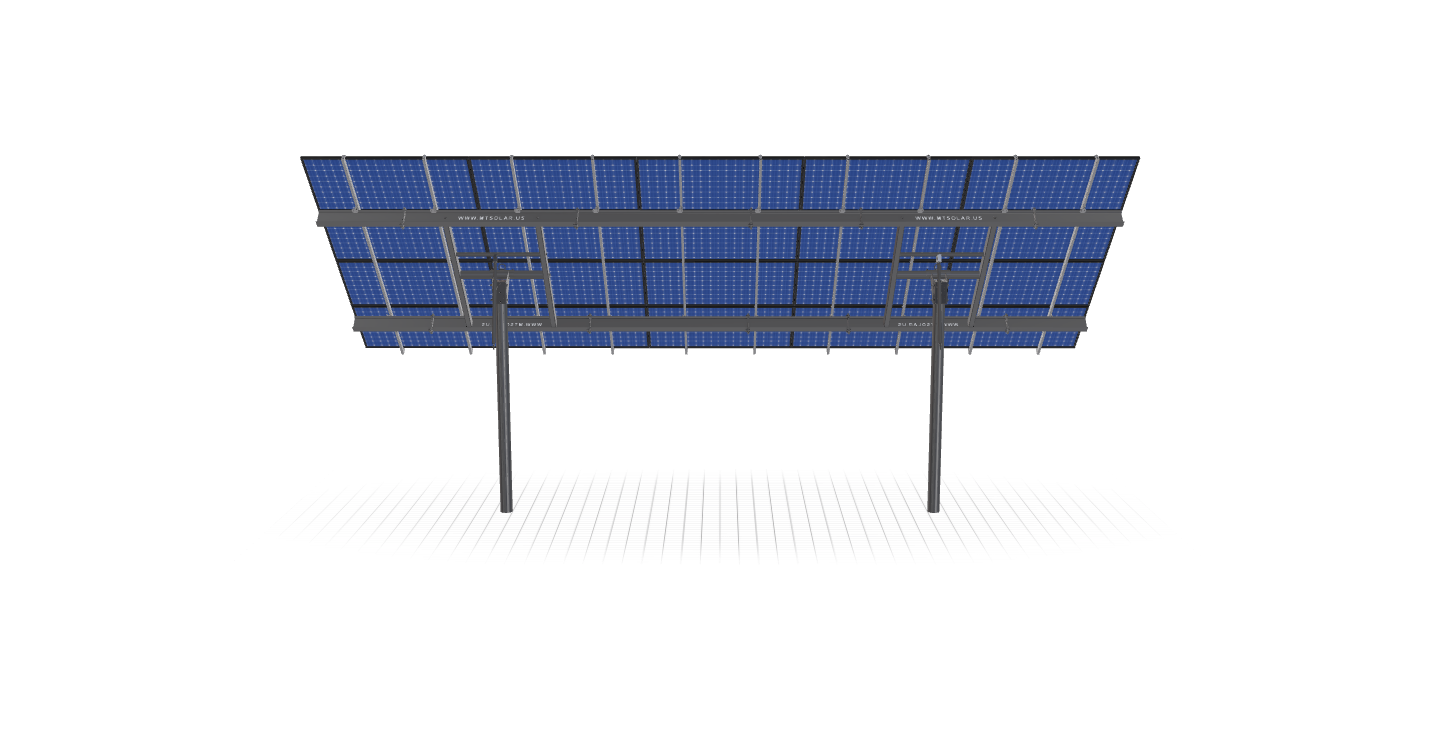

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Dave Lisonbee_Rev3.B_20
$9,058.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1675.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-4HX5W-5G96 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.93 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 492.89 |
| ARRAY WIDTH | 35.38 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 15.79 |
| PROJECTED PANEL HEIGHT | 9.73 |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 168.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | DAVE, LISONBEE, REV3.B, 20 |
| SITE ADDRESS | 9477, E, FOREST, CREEK, RD, HEBER, CITY, UT, 84032, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9058.43 |
| TOTAL WEIGHT | 1675.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7645685d-e064-41ce-b3b0-991acaf8f328.pdf |
|
| ID | 387.00 |
| 3D Solar link |
