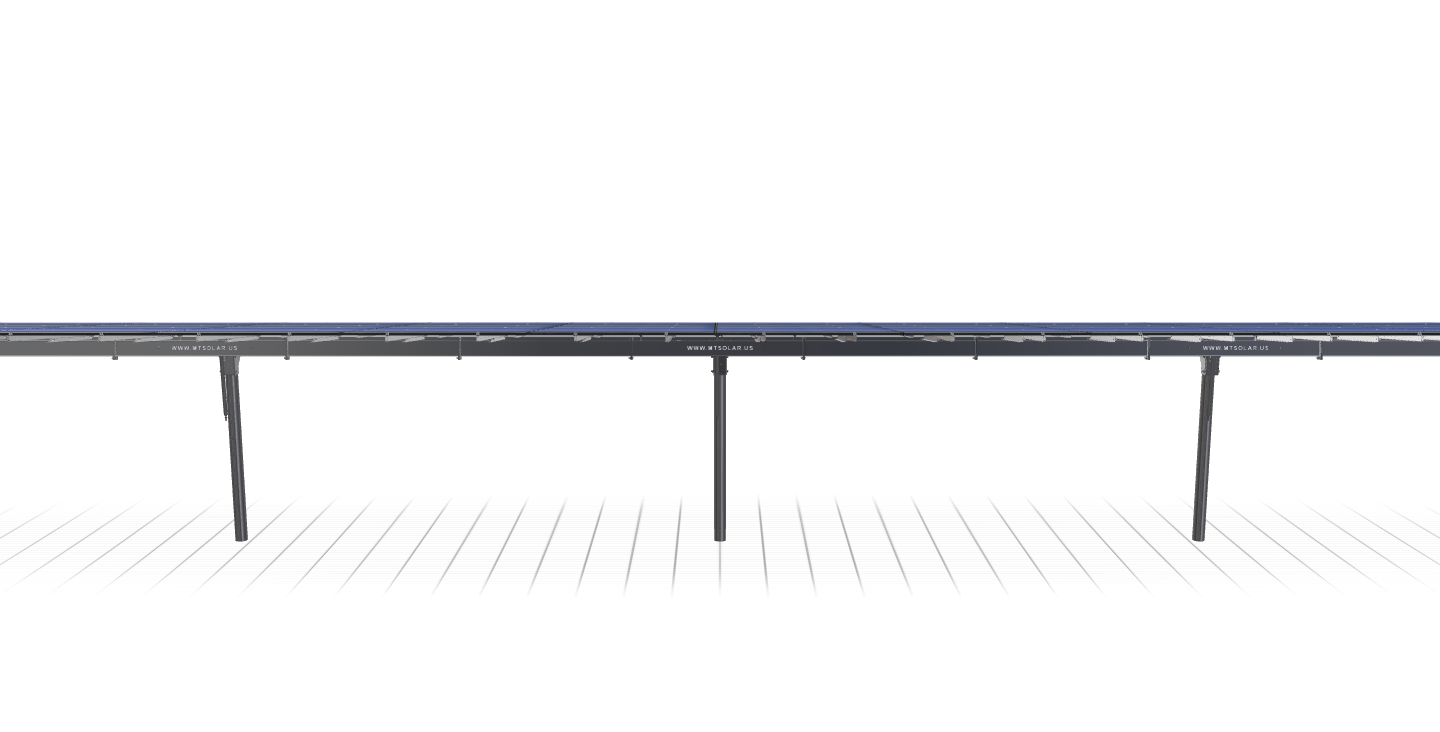

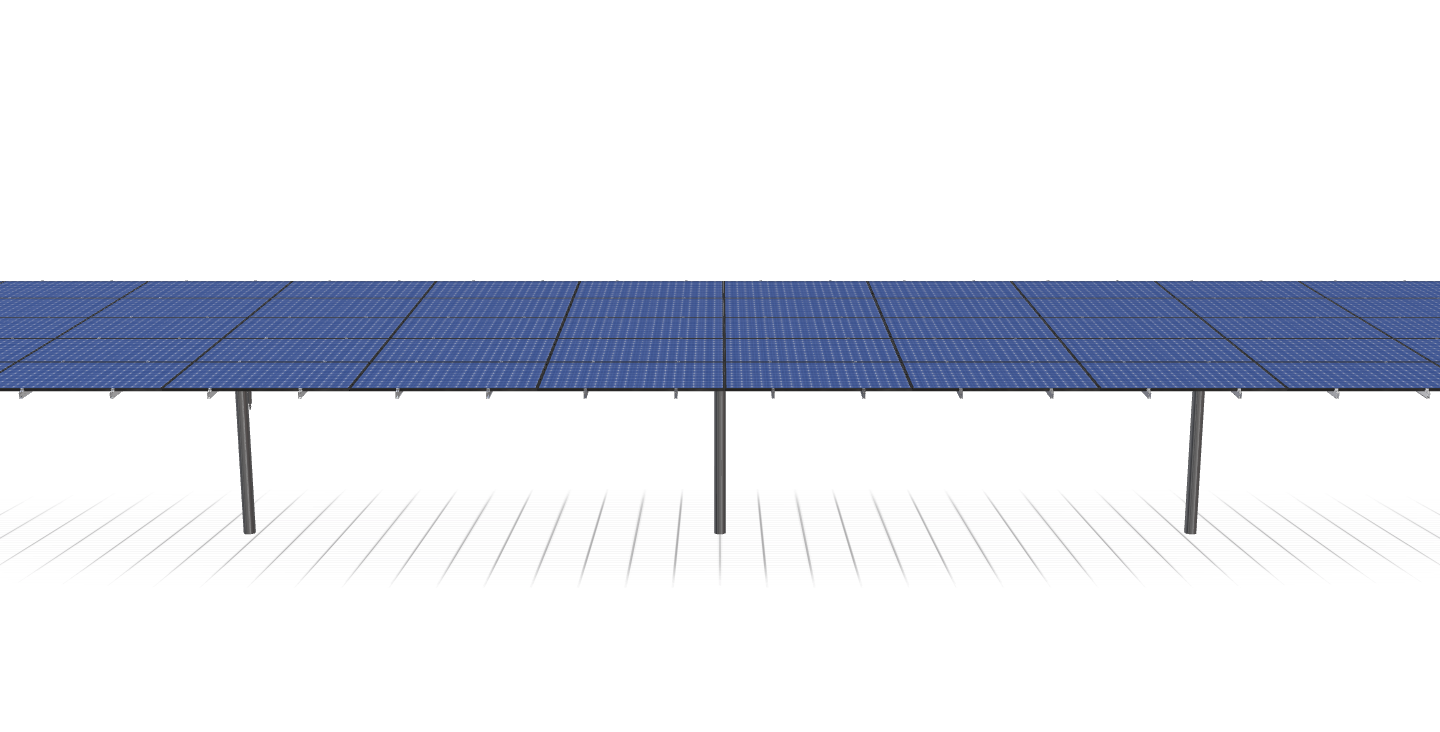

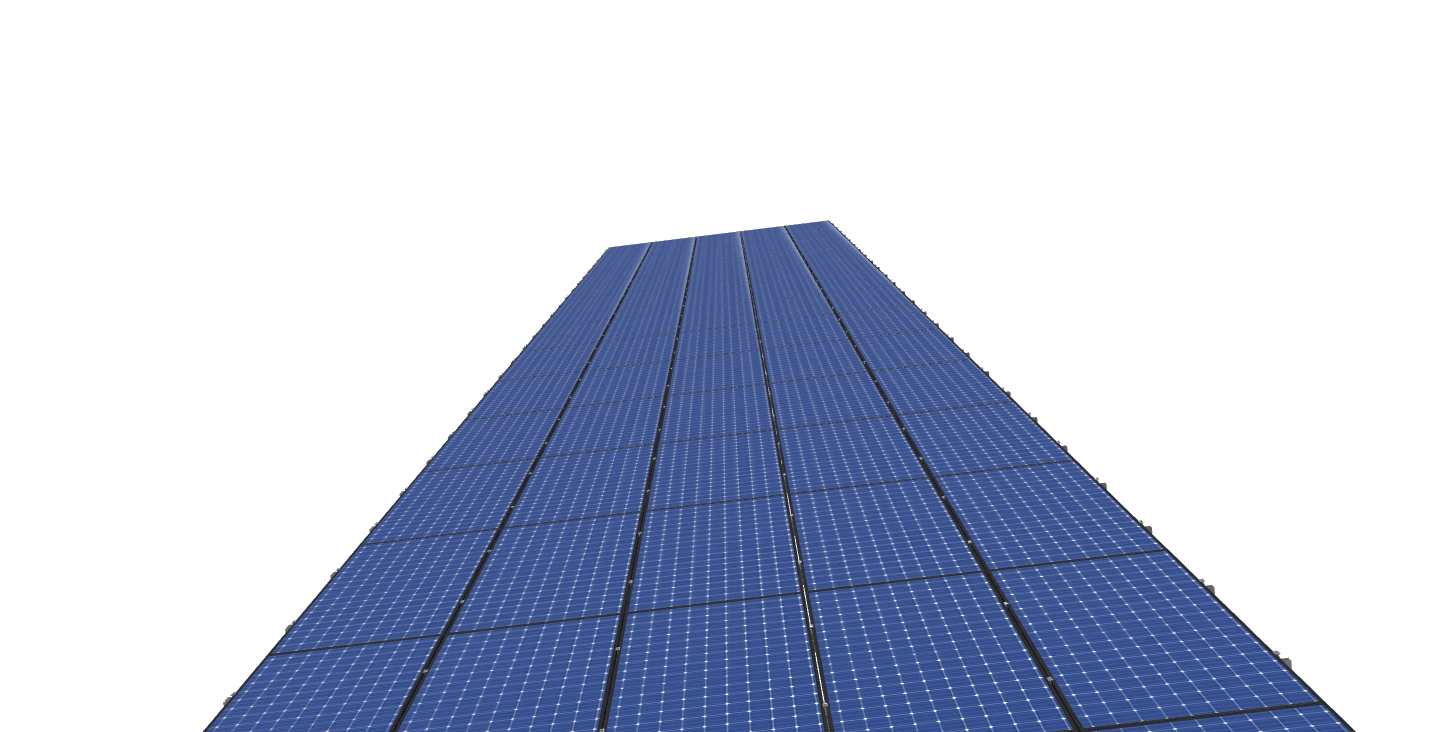

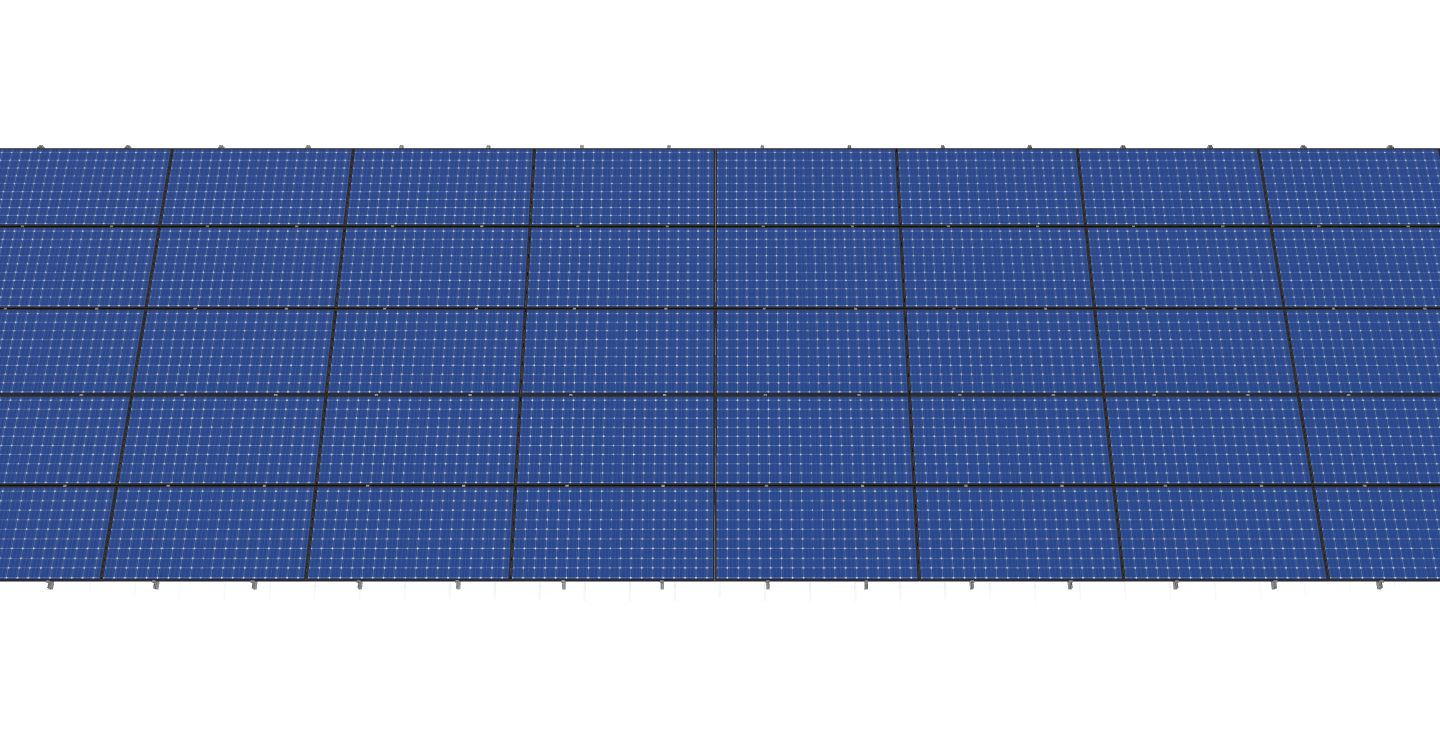

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.64 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
CHC-RevB
$29,899.26
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.64 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 6107.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-XD-45-L-5HX14W-5F25 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.15 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1990.67 |
| ARRAY WIDTH | 105.84 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 89.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 10.28 |
| PROJECTED PANEL HEIGHT | 2.27 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | CHC-REVB |
| SITE ADDRESS | 543, BEULAH, RD, VIENNA, VA, 22180, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 29899.26 |
| TOTAL WEIGHT | 6107.31 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/9cbd84a8-c3ca-4d30-b685-65e22e6aace5.pdf |
|
| ID | 960.00 |
| 3D Solar link |
