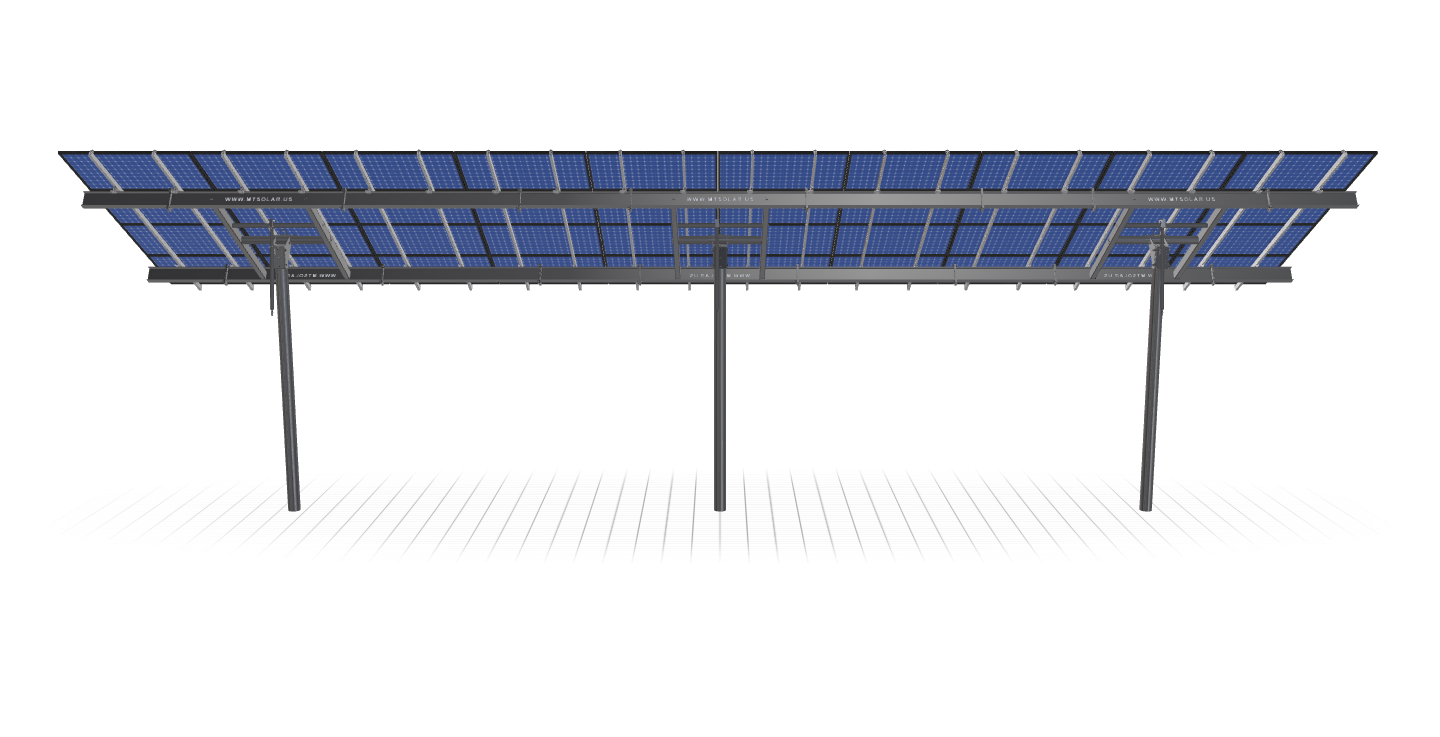

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.98 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
CarportExample
$16,500.87
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.98 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3057.0499999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-45-L-4HX10W-8D81 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.47 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 31.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 741.68 |
| ARRAY WIDTH | 54.97 |
| ARRAY HEIGHT | 13.49 |
| RAIL LENGTH | 161.92 |
| MODULE LENGTH | 64.96 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 15.91 |
| PROJECTED PANEL HEIGHT | 6.86 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | CARPORTEXAMPLE |
| SITE ADDRESS | 420, N, CANYON, RUN, BLVD, KETCHUM, ID, 83340, USA |
| MODULE WIDTH | 39.98 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 16500.87 |
| TOTAL WEIGHT | 3057.05 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/3f4bbc50-dd96-4d11-947f-9d690a41805c.pdf |
|
| ID | 506.00 |
| 3D Solar link |
