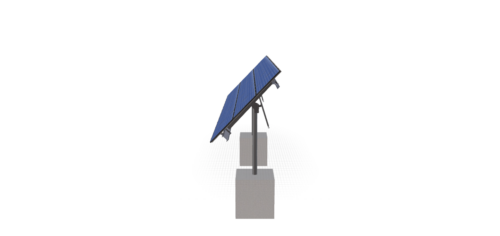

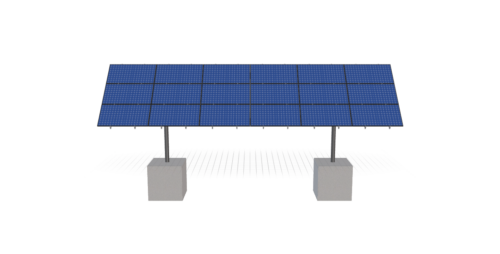

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41.25 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Baldis-JB-RevA
$8,041.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41.25 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1442.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-45-L-3HX6W-7FI9 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.75 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 401.84 |
| ARRAY WIDTH | 38.50 |
| ARRAY HEIGHT | 10.44 |
| RAIL LENGTH | 125.25 |
| MODULE LENGTH | 76.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 12.46 |
| PROJECTED PANEL HEIGHT | 7.42 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BALDIS-JB-REVA |
| SITE ADDRESS | 21, RODEO, DR, HAILEY, ID, 83333, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8041.48 |
| TOTAL WEIGHT | 1442.52 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/63ce8899-ce7b-4dbe-8232-b86a01c5fe30.pdf |
|
| ID | 360.00 |
| 3D Solar link |
