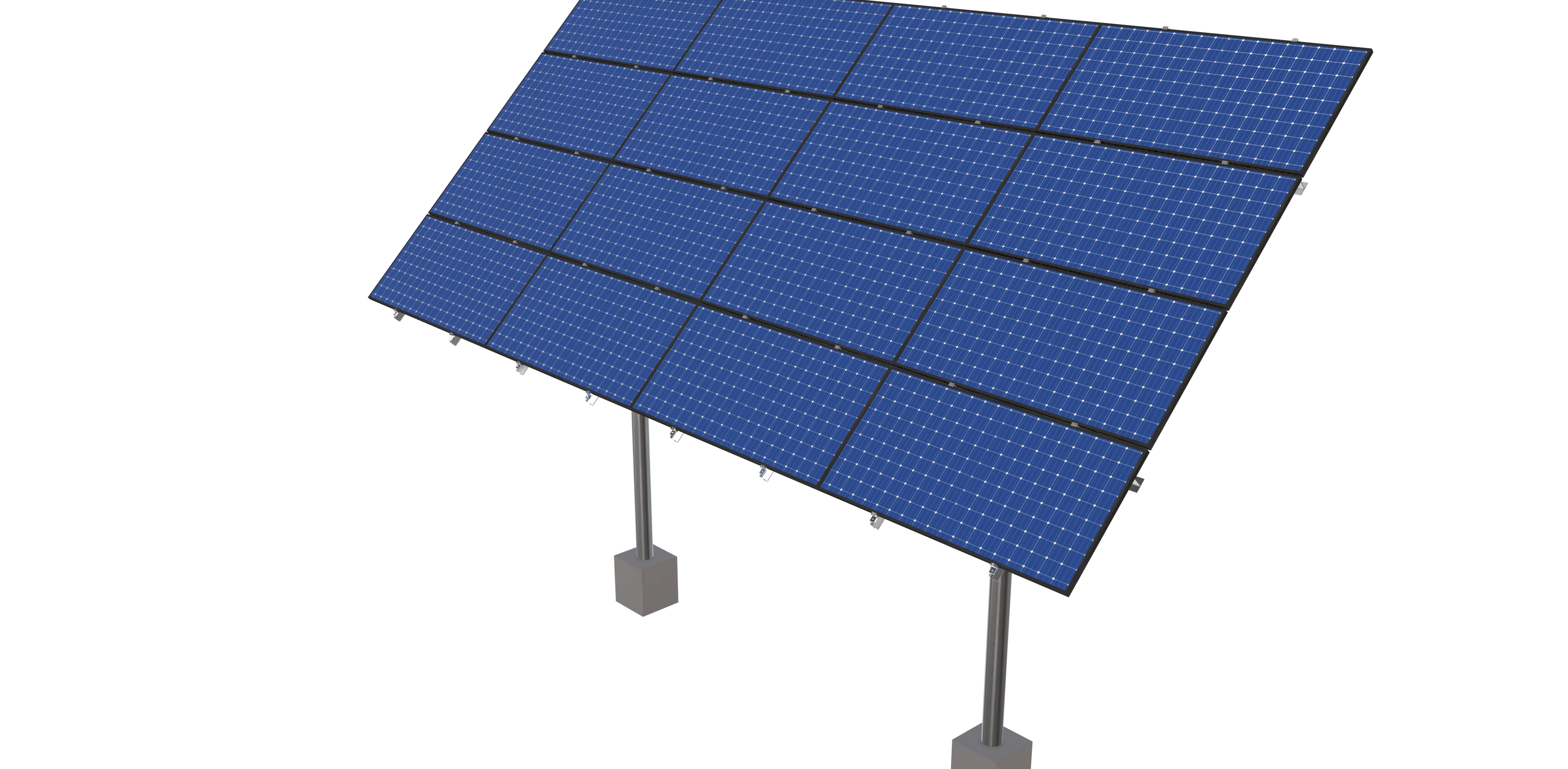

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
3999866089_REV.CU.A_2_16_2023_6_14_47_PM
$6,833.17
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1191.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-24-L-4HX4W |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.88 |
| WING SPAN | 24.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 383.55 |
| ARRAY WIDTH | 27.81 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.48 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 17.69 |
| PROJECTED PANEL HEIGHT | 9.63 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 3999866089, REV.CU.A |
| SITE ADDRESS | LUDERS, WY, BROOKLIN, ME, 04616, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6833.17 |
| TOTAL WEIGHT | 1191.38 |
| TOTAL PALLETS | 2.00 |
